Utility Anchor System

The OCS Utility Anchor System covers the smaller cast-in hardware every precast plant needs — V utility anchors in .444″ and .671″ shank diameters, steel wet-set handles for placement into wet concrete, and shear bars for temporary strapping and panel handling. Applications include panel-side tie-back points, temporary attachment during transport, and light lifting where a full-scale spherical head anchor would be over-specified. All utility anchors meet OSHA 29 CFR 1926.704 embedded lifting insert safety factors and ship from four U.S. distribution hubs.

6" .551 V Utility Anchor
Item#: OS-6CA14
$ 1.95 1.95 USD
Weight (lbs) : 1.11
Safe Working Load KN : 29
Wire Diameter : 14mm
W- Width : 10-9/16”
Ultimate Tensile Requirement KN : 116
Angel : 95°
Anchor Identification : 6/14
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 1-9/16”

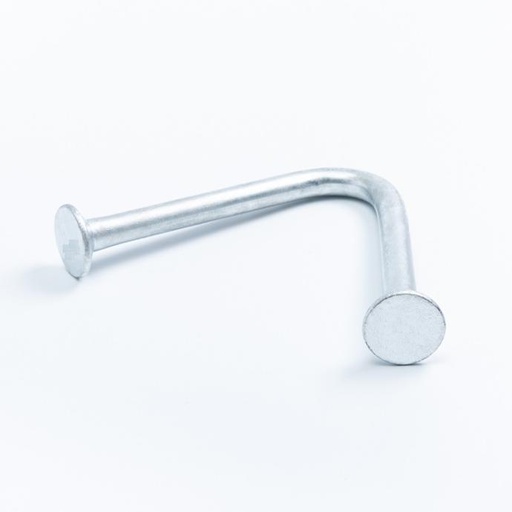

5".551" V Utility Anchor
Item#: OS-5CA14
$ 1.53 1.53 USD
Weight (lbs) : 0.76
Safe Working Load KN : 24.5
Wire Diameter : 14mm
W- Width : 8-1/4”
Ultimate Tensile Requirement KN : 98
Angel : 94°
Anchor Identification : 5/14
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 1-3/16”
4" .551" V Utility Anchor
Item#: OS-4CA14
$ 1.36 1.36 USD
Weight (lbs) : 0.61
Safe Working Load KN : 15.5
Wire Diameter : 14mm
W- Width : 6-1/4”
Ultimate Tensile Requirement KN : 62
Angel : 84°
Anchor Identification : 4/14
H : 3-1/8”
Typical Slab Thickness : 4"
FD - Foot Diameter : 1-3/16”
