Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections

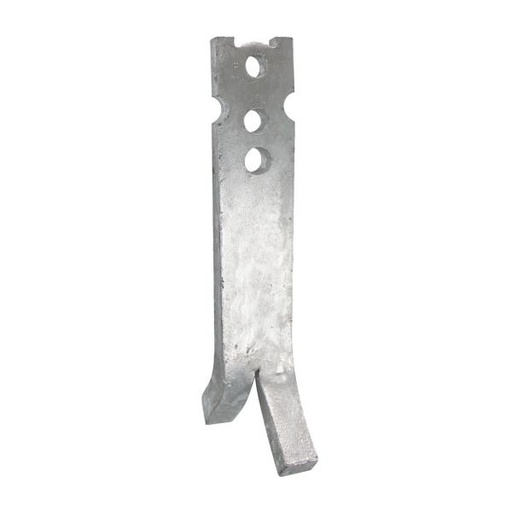

2T Split Foot Erection Anchor
$ 2.60 2.6 USD
L - Length : 8”
Weight (lbs) : 1.65
W : 2”
Size : 2.0T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
S - Spread : 2-3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
N : 1-13/16”
4T Split Foot Erection Anchor
$ 6.89 6.890000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 4.23
W : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
T - Thickness : 5/8”
S - Spread : 3-3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
N : 2-1/2”

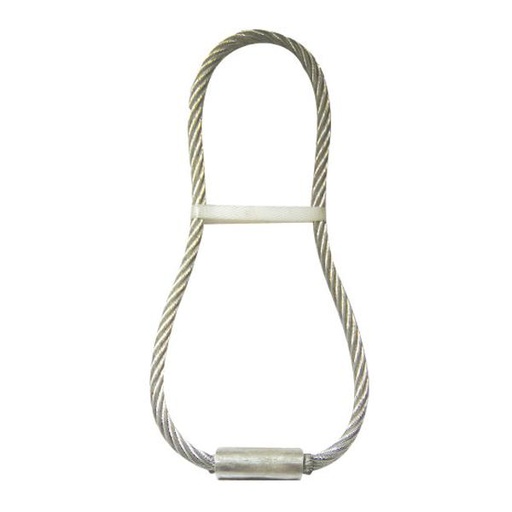

4000 lbs Lifting loop
$ 1.72 1.72 USD
Weight (lbs) : 0.56
Load Class : 1800
W : 5-1/8”
H : 11”
EH - Exposed Height (1/3 of Height) : 3-5/8”
ED - Embedded Depth (2/3 of Height) : 7-3/8”
D - Wire Diameter : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 4,000

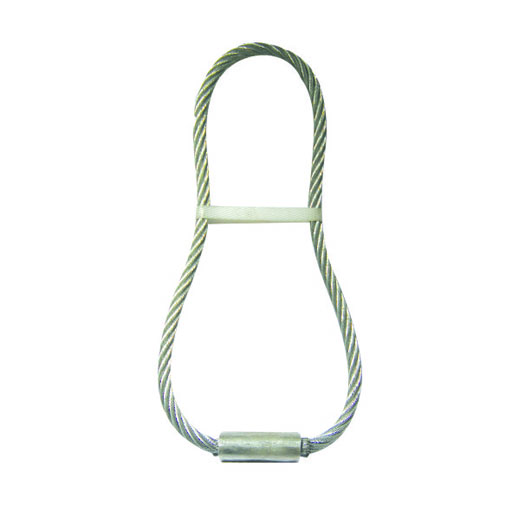

3000 lbs Lifting loop
$ 1.25 1.25 USD
Weight (lbs) : 0.37
Load Class : 1400
W : 4-3/4”
H : 9-1/4”
EH - Exposed Height (1/3 of Height) : 3-1/8”
ED - Embedded Depth (2/3 of Height) : 6-1/8”
D - Wire Diameter : 5/16”
Anchor Ultimate Mechanical Load in Tension (lbs) : 12,800
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 3,200
6600 lbs Lifting loop
$ 3.56 3.56 USD
Weight (lbs) : 1.17
Load Class : 3000
W : 5-7/8”
H : 13-3/8”
EH - Exposed Height (1/3 of Height) : 4-1/2”
ED - Embedded Depth (2/3 of Height) : 8-7/8”
D - Wire Diameter : 15/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 26,400
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 6,600
5000 lbs Lifting loop
$ 2.16 2.16 USD
Weight (lbs) : 0.75
Load Class : 2200
W : 5-1/2”
H : 12-1/8”
EH - Exposed Height (1/3 of Height) : 4”
ED - Embedded Depth (2/3 of Height) : 8-1/8”
D - Wire Diameter : 25/64”
Anchor Ultimate Mechanical Load in Tension (lbs) : 20,000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 5,000
2400 lbs Lifting loop
$ 0.99 0.99 USD
Weight (lbs) : 0.28
W : 4-5/16”
H : 8-7/8”
EH - Exposed Height (1/3 of Height) : 3”
ED - Embedded Depth (2/3 of Height) : 5-7/8”
D - Wire Diameter : 9/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 9,600
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 2,400
1600 lbs Lifting loop
$ 0.75 0.75 USD
Weight (lbs) : 0.19
W : 3-15/16”
H : 8-1/4”
EH - Exposed Height (1/3 of Height) : 2-3/4”
ED - Embedded Depth (2/3 of Height) : 5-1/2”
Load Class(kg) : 700
D - Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 6,400
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 1,600
.671” Utility Anchors Prcess Member
$ 18.43 18.43 USD
L - Length : 9-3/4”
Weight (lbs) : 2.15
W : 3”
Wire Diameter : 0.671”
H : 3-1/2”
Color : Black
.444" Utility Anchors Prcess Member
$ 18.54 18.54 USD
L - Length : 9-3/4”
Weight (lbs) : 2.21
W : 3”
Wire Diameter : 0.444”
H : 3-1/2”
Color : Black
8" 18mm Utility Anchors
$ 3.67 3.67 USD
Weight (lbs) : 2.17
Safe Working Load KN : 48.25
Wire Diameter : 18mm
W- Width : 12-3/8”
Ultimate Tensile Requirement KN : 193
Anchor Identification : 8/18
H : 6-3/4”
Typical Slab Thickness : 8”
FD - Foot Diameter : 2”
6" 18mm Utility Anchors
$ 2.91 2.91 USD
Weight (lbs) : 1.63
Safe Working Load KN : 32.5
Wire Diameter : 18mm
W- Width : 9-1/16”
Ultimate Tensile Requirement KN : 130
Angel : 80°
Anchor Identification : 6/18
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 2”
5" 18mm Utility Anchors
$ 2.52 2.52 USD
Weight (lbs) : 1.44
Safe Working Load KN : 26.75
Wire Diameter : 0.708”
W- Width : 8-5/8”
Ultimate Tensile Requirement KN : 107
Angel : 101°
Anchor Identification : 5/18
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 2”
6" 14mm Utility Anchors
$ 1.95 1.95 USD
Weight (lbs) : 1.11
Safe Working Load KN : 29
Wire Diameter : 14mm
W- Width : 10-9/16”
Ultimate Tensile Requirement KN : 116
Angel : 95°
Anchor Identification : 6/14
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 1-9/16”
5" 14mm Utility Anchors
$ 1.53 1.53 USD
Weight (lbs) : 0.76
Safe Working Load KN : 24.5
Wire Diameter : 14mm
W- Width : 8-1/4”
Ultimate Tensile Requirement KN : 98
Angel : 94°
Anchor Identification : 5/14
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 1-3/16”
4" 14mm Utility Anchors
$ 1.14 1.1400000000000001 USD
Weight (lbs) : 0.61
Safe Working Load KN : 15.5
Wire Diameter : 14mm
W- Width : 6-1/4”
Ultimate Tensile Requirement KN : 62
Angel : 84°
Anchor Identification : 4/14
H : 3-1/8”
Typical Slab Thickness : 4"
FD - Foot Diameter : 1-3/16”
8" .671" Utility Anchors
$ 2.96 2.96 USD
Weight (lbs) : 1.81
Safe Working Load KN : 48.25
Wire Diameter : 0.671”
W- Width : 9-3/4"
Ultimate Tensile Requirement KN : 193
Angel : 60°
Anchor Identification : 8/6
H : 6-3/4”
Typical Slab Thickness : 8”
FD - Foot Diameter : 1-5/8”
6" .671" Utility Anchors
$ 2.29 2.29 USD
Weight (lbs) : 1.34
Safe Working Load KN : 32.5
Wire Diameter : 0.671”
W- Width : 7-1/2"
Ultimate Tensile Requirement KN : 130
Angel : 60°
Anchor Identification : 6/6
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 1-5/8”

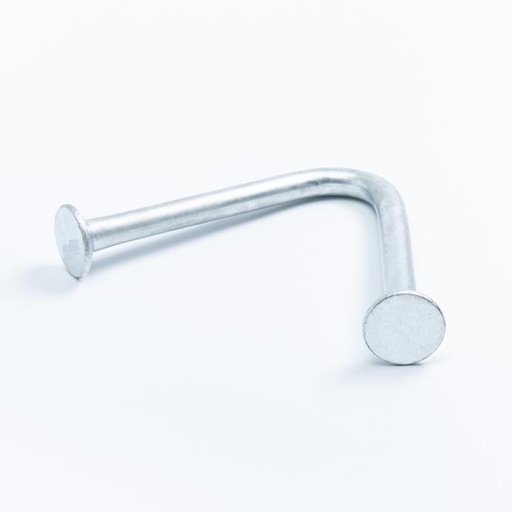

5" .671" Utility Anchors
$ 1.92 1.92 USD
Weight (lbs) : 1.11
Safe Working Load KN : 20.25
Wire Diameter : 0.671”
W- Width : 6-1/4"
Ultimate Tensile Requirement KN : 81
Angel : 60°
Anchor Identification : 5/6
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 1-5/8”
6" .444" Utility Anchors
$ 1.07 1.07 USD
Weight (lbs) : 0.59
Safe Working Load KN : 19.75
Wire Diameter : 0.444”
W- Width : 7-1/4”
Ultimate Tensile Requirement KN : 79
Angel : 60°
Anchor Identification : 6/4
H : 4-3/4”
Typical Slab Thickness : 6"
FD - Foot Diameter : 15/16”
