Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections
1.3T Spherical Head Lifting Anchor
$ 0.31 0.31 USD
Size : 1.3T
L : 1-19/20"
D : 2/5”
W（Kg） : 0.055
1.3T Spherical Head Lifting Anchor
$ 0.30 0.3 USD
Size : 1.3T
L : 1-3/4"
D : 2/5”
W（Kg） : 0.053
1.3T Spherical Head Lifting Anchor
$ 0.28 0.28 USD
Size : 1.3T
L : 1/3"
D : 2/5”
W（Kg） : 0.044
8-12T Recess Member for Erection Anchor
$ 16.98 16.98 USD
L - Length : 7-7/16”
Weight (lbs) : 1.25
W : 3-1/16”
Plate Thickness : 20
Size : 10.0T
H : 3-1/4”
Color : Green
D - Diameter : 1/2”
4-6T Recess Member for Erection Anchor
$ 5.67 5.67 USD
L - Length : 5”
Weight (lbs) : 0.44
W : 2-1/16”
Plate Thickness : 16
Size : 5.0Т
H : 2-7/16”
Ring Clutch System : 4-6T
Color : Orange
D - Diameter : 3/8”
2-3T Recess Member for Erection Anchor
$ 3.51 3.5100000000000002 USD
L - Length : 4-1/16”
Weight (lbs) : 0.22
W : 1-11/16”
Plate Thickness : 10
Size : 2.5Т
H : 1-7/8”
Ring Clutch System : 2-3T
Color : Yellow
D - Diameter : 3/8”
8-12T Ring Cluch
$ 231.30 231.3 USD
Weight (lbs) : 20.57
Load Class : 8-12T
H : 3-3/8”
W : 5-1/2”
Ultimate Capacity in Tension (lbs) : 120,000
L : 16-1/2”
T : 1”

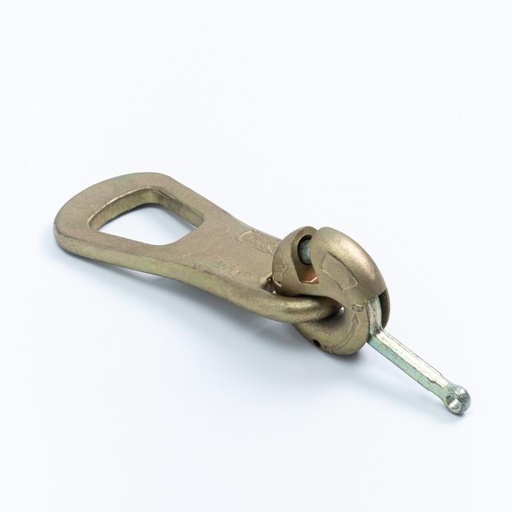

4-6T Ring Cluch
$ 81.77 81.77 USD
Weight (lbs) : 8.04
Load Class : 4-6T
Ultimate Tensile Requirement KN : 245
H : 3”
W : 4-7/16”
Ultimate Capacity in Tension (lbs) : 60,000
L : 13-1/4”
T : 5/8”
2-3T Ring Cluch
$ 46.72 46.72 USD
Weight (lbs) : 3.57
Load Class : 2-3T
Safe Working Load KN : 24.5
W : 3-3/4”
H : 2-1/2”
Ultimate Capacity in Tension (lbs) : 30,000
L : 10-5/16”
T : 1/2”
12.5T-22T Ring Cluch W/wire Cable
$ 513.99 513.99 USD
Weight (lbs) : 60.63
W : 8-7/8”
Safe Working Load KN : 215
Ultimate Tensile Requirement KN : 1150
H : 62”
Load Class(kg) : 12.5-22T
Ultimate Capacity in Tension (lbs) : 220,000
8T-12T Ring Cluch W/wire Cable
$ 210.26 210.26 USD
Weight (lbs) : 22.11
Load Class : 8-12T
W : 6-3/8”
Safe Working Load KN : 98
Ultimate Tensile Requirement KN : 490
H : 33-1/2”
Ultimate Capacity in Tension (lbs) : 120,000
4T-6T Ring Cluch W/wire Cable
$ 70.10 70.10000000000001 USD
Weight (lbs) : 7.38
Load Class : 4-6T
W : 5-5/8”
Safe Working Load KN : 49
Ultimate Tensile Requirement KN : 245
H : 25-1/2”
Ultimate Capacity in Tension (lbs) : 60,000
2-3T Ring Cluch W/wire Cable
$ 39.73 39.730000000000004 USD
Weight (lbs) : 3.87
Load Class : 2-3T
W : 4-7/8”
Safe Working Load KN : 24.5
Ultimate Tensile Requirement KN : 122.5
H : 23-3/4”
Ultimate Capacity in Tension (lbs) : 30,000
1 Ton Erection Anchor
$ 0.65 0.65 USD
L - Length : 4-15/16”
Weight (lbs) : 0.34
W : 1-3/16”
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 918
4:1 SWL Shear w/ Shear Bar (lbs) : 611
Size : 1T
Ring Clutch System : 1T
D : 7/16”
T - Thickness : 1/4”
S - Spread : 1-3/4”
4:1 SWL Tension w/ Tension Bar (lbs) : 2,000
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
Min. Panel Thickness : 3”
4:1 SWL Tension w/o Tension Bar (lbs) : 1,160
N : 3/4”
Min. Corner Distance : 12”
8Т Insulated Panel Anchor
$ 8.81 8.81 USD
L - Length : 4-3/4”
Weight (lbs) : 5.64
W : 6”
Size : 8.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
A : 3-1/2”
B : 4-3/8”
4Т Insulated Panel Anchor
$ 4.99 4.99 USD
L - Length : 3-1/4”
Weight (lbs) : 2.98
W : 6”
Size : 4.0T
T - Thickness : 5/8”
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
A : 1-13/16”
B : 4-3/8”
8T x 6-1/4" Plate Anchor
$ 8.14 8.14 USD
Ton : 8T
Weight (lbs) : 5.45
W : 2-1/2”
Ring Clutch Systerm : 8T-12T
Shear Load (bs) : 6,350
L : 5”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
H : 6-1/4”
Tension Load (lbs) : 6,350
T : 3/4”
4T x 4-3/8" Plate Anchors
$ 3.28 3.2800000000000002 USD
Ton : 4T
Weight (lbs) : 1.92
W : 1-1/2"
Ring Clutch Systerm : 4T-6T
L : 3-7/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32000
Shear Load (lbs) : 4,730
H : 4-3/8”
Tension Load (lbs) : 4,730
T : 5/8”
2T x 2-1/4" Plate Anchors
$ 1.35 1.35 USD
Ton : 2T
Weight (lbs) : 0.74
W : 1-1/4”
Ring Clutch Systerm : 2T-3T
Shear Load (bs) : 950
L : 3-3/4"
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
H : 2-1/4"
TensionLoad (lbs) : 950
T : 3/8"
22T Two-Hole Anchors
$ 15.78 15.780000000000001 USD
L - Length : 11-3/4”
Weight (lbs) : 10.36
T - Thickness : 1-3/16”
W : 3-1/8”
Size : 22.0T
Ring Clutch System : 12.5T-22T
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Min. Panel Thickness : 7”
Reinforced Tension Load (lbs) : 44,000
A : 1-13/16”
B : 1-3/8”
C : 2-7/16”
