U-Anchors and Lift Loops

The U-Anchors & Lift Loops category covers OCS's lightweight cast-in and cast-through hardware — U-Anchors (recently renamed U-Anchors in our current catalogue) for utility connections and tie-backs, and steel-core lift loops for temporary handling of lighter precast components. U-Anchors are available in five diameters from 1/4″ through 5/8″. Lift loops are rated from 500 lbs through 10,000 lbs. Both product lines meet OSHA 29 CFR 1926.704 embedded lifting insert safety factors and are stocked across four U.S. distribution centers for 1–2 day shipping.

4500 lbs Steel Core Lift Loop
Item#: RL-LLO-4500
$ 1.57 1.57 USD
Weight (lbs) : 0.56
W : 5-1/8”
H : 11”
EH - Exposed Height (1/3 of Height) : 3-5/8”
ED - Embedded Depth (2/3 of Height) : 7-3/8”
D - Wire Diameter : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 18000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 4500
3200 lbs Steel Core Lift Loop
Item#: RL-LLO-3200
$ 1.19 1.19 USD
Weight (lbs) : 0.37
W : 4-3/4”
H : 9-1/4”
EH - Exposed Height (1/3 of Height) : 3-1/8”
ED - Embedded Depth (2/3 of Height) : 6-1/8”
D - Wire Diameter : 5/16”
Anchor Ultimate Mechanical Load in Tension (lbs) : 12,800
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 3,200
7000 lbs Steel Core Lift Loop
Item#: RL-LLO-7000
$ 3.35 3.35 USD
Weight (lbs) : 1.17
W : 5-7/8”
H : 13-3/8”
EH - Exposed Height (1/3 of Height) : 4-1/2”
ED - Embedded Depth (2/3 of Height) : 8-7/8”
D - Wire Diameter : 15/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 28000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 7000
5200 lbs Steel Core Lift Loop
Item#: RL-LLO-5200
$ 2.20 2.2 USD
Weight (lbs) : 0.75
W : 5-1/2”
H : 12-1/8”
EH - Exposed Height (1/3 of Height) : 4”
ED - Embedded Depth (2/3 of Height) : 8-1/8”
D - Wire Diameter : 25/64”
Anchor Ultimate Mechanical Load in Tension (lbs) : 20800
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 5200

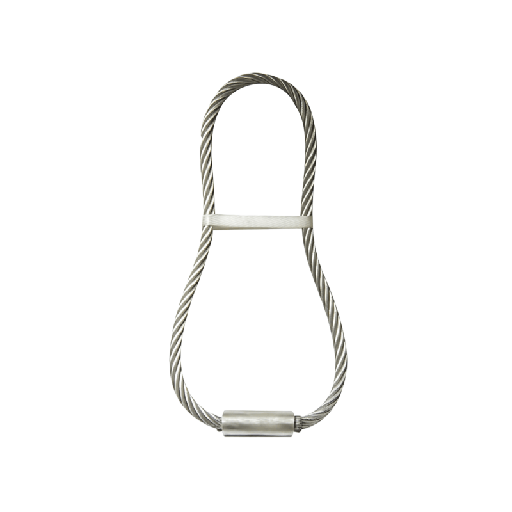

2400 lbs Steel Core Lift Loop
Item#: RL-LLO-2400
$ 0.98 0.98 USD
Weight (lbs) : 0.28
W : 4-5/16”
H : 8-7/8”
EH - Exposed Height (1/3 of Height) : 3”
ED - Embedded Depth (2/3 of Height) : 5-7/8”
D - Wire Diameter : 9/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 9,600
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 2,400
2000 lbs Steel Core Lift Loop
Item#: RL-LLO-2000
$ 0.75 0.75 USD
Weight (lbs) : 0.19
W : 3-15/16”
H : 8-1/4”
EH - Exposed Height (1/3 of Height) : 2-3/4”
ED - Embedded Depth (2/3 of Height) : 5-1/2”
D - Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 8000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 2000

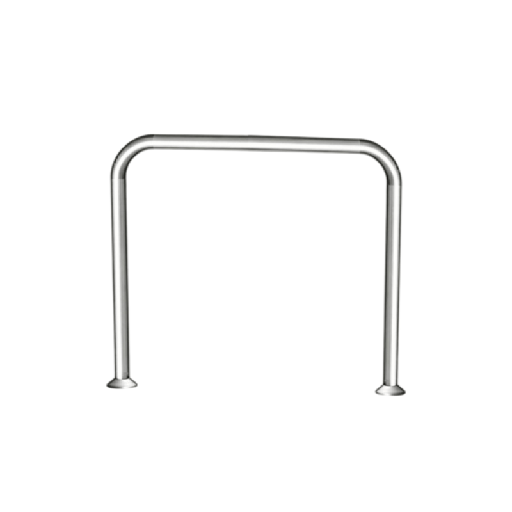

1/4" X 4-3/8" W X 4-1/2" Steel Wet Set Handle
OS-SWSH-9
$ 0.60 0.6 USD
W : 4-3/8”
Ultimate Tensile Requirement : 500
Wire Diameter : ¼”
Hight : 4-1/2"
500 lbs Steel Core Lift Loop ,NSS
Item#: RL-LLO-200
$ 1.36 1.36 USD
Weight (lbs) : 0.04
W : 3-3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 2000
EH - Exposed Height (1/3 of Height) : 2-5/8"
D-Wire Diameter : 1/8"
ED - Embedded Depth (2/3 of Height) : 5-3/8"
H : 8"
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 500
1/4" X 6" U-Anchor
Item#: OS-RAN-28
$ 0.66 0.66 USD
L - Length : 6"
Weight (bs) : 0.19
W : 2-11/16"
Foot Width : 2-15/16”
Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 6,400
Ultimate Tensile Requirement KN : ≥28.5KN
Foot Diameter : 1/2"
7/16" X 11" U-Anchor
$ 2.44 2.44 USD
L - Length : 11"
Weight (lbs) : 1.27
W : 3-1/2"
Foot Width : 3-7/8"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 30,000
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
3/8" X 7" U-Anchor
Item#: OS-RAN-133EX
$ 1.05 1.05 USD
L - Length : 7”
Weight (bs) : 0.63
W : 2-3/4"
Foot Width : 3-7/16"
Wire Diameter : 3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 18,760
Ultimate Tensile Requirement KN : ≥83KN
Foot Diameter : 1"
7/16" X 9" U-Anchor
Item#: OS-RAN-28
$ 2.08 2.08 USD
L - Length : 9"
Weight (bs) : 1.08
W : 3-1/2"
Foot Width : 3-15/16"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 29800
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
5/8" X 16-1/2" U-Anchor
Item#: OS-RAN-201
$ 5.82 5.82 USD
L - Length : 16-1/2"
Weight (bs) : 3.5
W : 11-9/16"
Foot Width : 11-9/16"
Wire Diameter : 5/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 45000
Ultimate Tensile Requirement KN : ≥201KN
500 lbs Steel Core Lift Loop
RL-LLO-500
$ 0.36 0.36 USD
Weight (lbs) : 0.06
W - Width : 3-3/8"
H- Height : 8"
Anchor Ultimate Mechanical Load Tension (lbs) : 2000
EH - Exposed Height (1/3 of Height) : 2-5/8"
D-Wire Diameter : 1/8"
ED - Embedded Depth (2/3 of Height) : 5-3/8"
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 500
10000 lbs Steel Core Lift Loop
Item#: RL-LLO-10000
$ 5.45 5.45 USD
Weight (lbs) : 1.17
W : 7-1/2"
H : 15"
EH - Exposed Height (1/3 of Height) : 5"
ED - Embedded Depth (2/3 of Height) : 10"
D - Wire Diameter : 9/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 40000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 10000
