Lifting And Handling

Lifting and Handling covers the complete OCS catalogue of precast concrete lifting hardware — from spherical head lifting anchors and forged erection anchors to matching ring clutches, lifting eyes, and utility anchors. Every product in this category is manufactured to meet OSHA 29 CFR 1926.704 safety factors and stocked across four U.S. distribution hubs for 1–2 day delivery. Browse by product family below, or contact our engineering team for custom lifting solutions matched to your panel geometry.

2T Split Foot Erection Anchor
Item#: MPA-ME-2-200
$ 2.60 2.6 USD
L - Length : 8”
Weight (lbs) : 1.65
W : 2”
Size : 2.0T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
S - Spread : 2-3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
N : 1-13/16”
4T Split Foot Erection Anchor
Item#: MPA-ME-4-265
$ 6.89 6.890000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 4.23
W : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
T - Thickness : 5/8”
S - Spread : 3-3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
N : 2-1/2”
4500 lbs Steel Core Lift Loop
Item#: RL-LLO-4500
$ 1.57 1.57 USD
Weight (lbs) : 0.56
W : 5-1/8”
H : 11”
EH - Exposed Height (1/3 of Height) : 3-5/8”
ED - Embedded Depth (2/3 of Height) : 7-3/8”
D - Wire Diameter : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 18000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 4500
3200 lbs Steel Core Lift Loop
Item#: RL-LLO-3200
$ 1.19 1.19 USD
Weight (lbs) : 0.37
W : 4-3/4”
H : 9-1/4”
EH - Exposed Height (1/3 of Height) : 3-1/8”
ED - Embedded Depth (2/3 of Height) : 6-1/8”
D - Wire Diameter : 5/16”
Anchor Ultimate Mechanical Load in Tension (lbs) : 12,800
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 3,200
7000 lbs Steel Core Lift Loop
Item#: RL-LLO-7000
$ 3.35 3.35 USD
Weight (lbs) : 1.17
W : 5-7/8”
H : 13-3/8”
EH - Exposed Height (1/3 of Height) : 4-1/2”
ED - Embedded Depth (2/3 of Height) : 8-7/8”
D - Wire Diameter : 15/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 28000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 7000
5200 lbs Steel Core Lift Loop
Item#: RL-LLO-5200
$ 2.20 2.2 USD
Weight (lbs) : 0.75
W : 5-1/2”
H : 12-1/8”
EH - Exposed Height (1/3 of Height) : 4”
ED - Embedded Depth (2/3 of Height) : 8-1/8”
D - Wire Diameter : 25/64”
Anchor Ultimate Mechanical Load in Tension (lbs) : 20800
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 5200
2400 lbs Steel Core Lift Loop
Item#: RL-LLO-2400
$ 0.98 0.98 USD
Weight (lbs) : 0.28
W : 4-5/16”
H : 8-7/8”
EH - Exposed Height (1/3 of Height) : 3”
ED - Embedded Depth (2/3 of Height) : 5-7/8”
D - Wire Diameter : 9/32”
Anchor Ultimate Mechanical Load in Tension (lbs) : 9,600
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 2,400
2000 lbs Steel Core Lift Loop
Item#: RL-LLO-2000
$ 0.75 0.75 USD
Weight (lbs) : 0.19
W : 3-15/16”
H : 8-1/4”
EH - Exposed Height (1/3 of Height) : 2-3/4”
ED - Embedded Depth (2/3 of Height) : 5-1/2”
D - Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 8000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 2000
.671” Utility Anchor Recess Member
Item#: OS-UARM-17V
$ 25.24 25.240000000000002 USD
L - Length : 9-3/4”
Weight (lbs) : 2.15
W : 3”
Wire Diameter : 0.671”
H : 3-1/2”
Color : Black
.444" Utility Anchor Recess Member
Item#: OS-UARM-12V
$ 25.27 25.27 USD
L - Length : 9-3/4”
Weight (lbs) : 2.21
W : 3”
Wire Diameter : 0.444”
H : 3-1/2”
Color : Black
8" .709" V Utility Anchor
Item#: OS-8CA18
$ 3.77 3.77 USD
Weight (lbs) : 2.17
Safe Working Load KN : 48.25
Wire Diameter : 18mm
W- Width : 12-3/8”
Ultimate Tensile Requirement KN : 193
Anchor Identification : 8/18
H : 6-3/4”
Typical Slab Thickness : 8”
FD - Foot Diameter : 2”

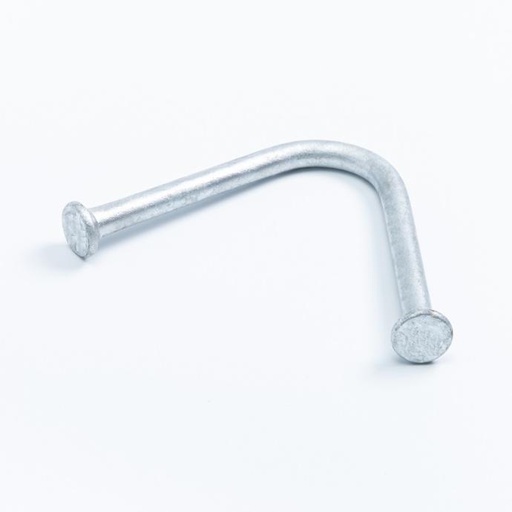

6" .709" V Utility Anchor
Item#: OS-6CA18
$ 3.19 3.19 USD
Weight (lbs) : 1.63
Safe Working Load KN : 32.5
Wire Diameter : 18mm
W- Width : 9-1/16”
Ultimate Tensile Requirement KN : 130
Angel : 80°
Anchor Identification : 6/18
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 2”
5" .709" V Utility Anchor
Item#: OS-5CA18
$ 2.76 2.7600000000000002 USD
Weight (lbs) : 1.44
Safe Working Load KN : 26.75
Wire Diameter : 0.708”
W- Width : 8-5/8”
Ultimate Tensile Requirement KN : 107
Angel : 101°
Anchor Identification : 5/18
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 2”

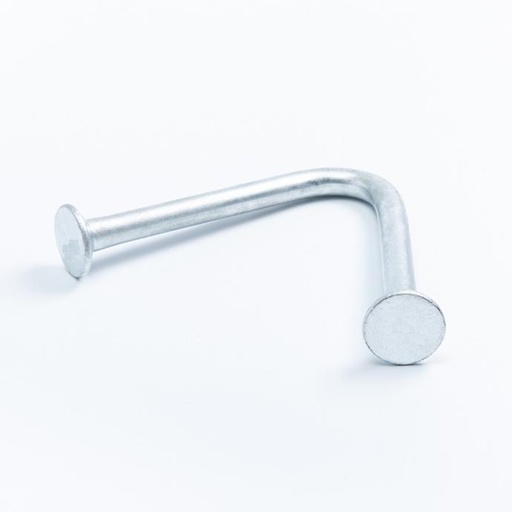

6" .551 V Utility Anchor
Item#: OS-6CA14
$ 1.95 1.95 USD
Weight (lbs) : 1.11
Safe Working Load KN : 29
Wire Diameter : 14mm
W- Width : 10-9/16”
Ultimate Tensile Requirement KN : 116
Angel : 95°
Anchor Identification : 6/14
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 1-9/16”
5".551" V Utility Anchor
Item#: OS-5CA14
$ 1.53 1.53 USD
Weight (lbs) : 0.76
Safe Working Load KN : 24.5
Wire Diameter : 14mm
W- Width : 8-1/4”
Ultimate Tensile Requirement KN : 98
Angel : 94°
Anchor Identification : 5/14
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 1-3/16”
4" .551" V Utility Anchor
Item#: OS-4CA14
$ 1.36 1.36 USD
Weight (lbs) : 0.61
Safe Working Load KN : 15.5
Wire Diameter : 14mm
W- Width : 6-1/4”
Ultimate Tensile Requirement KN : 62
Angel : 84°
Anchor Identification : 4/14
H : 3-1/8”
Typical Slab Thickness : 4"
FD - Foot Diameter : 1-3/16”
8" .671" V Utility Anchor
Item#: OS-8UA671
$ 3.41 3.41 USD
Weight (lbs) : 1.81
Safe Working Load KN : 48.25
Wire Diameter : 0.671”
W- Width : 9-3/4"
Ultimate Tensile Requirement KN : 193
Angel : 60°
Anchor Identification : 8/6
H : 6-3/4”
Typical Slab Thickness : 8”
FD - Foot Diameter : 1-5/8”
6" .671" V Utility Anchor
Item#: OS-6UA671
$ 2.29 2.29 USD
Weight (lbs) : 1.34
Safe Working Load KN : 32.5
Wire Diameter : 0.671”
W- Width : 7-1/2"
Ultimate Tensile Requirement KN : 130
Angel : 60°
Anchor Identification : 6/6
H : 4-3/4”
Typical Slab Thickness : 6”
FD - Foot Diameter : 1-5/8”
5" .671" V Utility Anchor
Item#: OS-5UA671
$ 1.92 1.92 USD
Weight (lbs) : 1.11
Safe Working Load KN : 20.25
Wire Diameter : 0.671”
W- Width : 6-1/4"
Ultimate Tensile Requirement KN : 81
Angel : 60°
Anchor Identification : 5/6
H : 3-3/4”
Typical Slab Thickness : 5”
FD - Foot Diameter : 1-5/8”
6" .444" V Utility Anchor
Item#: OS-6UA444
$ 1.07 1.07 USD
Weight (lbs) : 0.59
Safe Working Load KN : 19.75
Wire Diameter : 0.444”
W- Width : 7-1/4”
Ultimate Tensile Requirement KN : 79
Angel : 60°
Anchor Identification : 6/4
H : 4-3/4”
Typical Slab Thickness : 6"
FD - Foot Diameter : 15/16”
