Lifting And Handling

5" .444" V Utility Anchor
Item#: OS-5UA444
$ 0.86 0.86 USD
Weight (lbs) : 0.53
Safe Working Load KN : 17.25
Wire Diameter : 0.444”
W- Width : 6”
Ultimate Tensile Requirement KN : 69
Angel : 60°
Anchor Identification : 5/4
H : 3-3/4”
Typical Slab Thickness : 5"
FD - Foot Diameter : 15/16”
4" .444" V Utility Anchor
Item#: OS-4UA444
$ 0.78 0.78 USD
Weight (lbs) : 0.45
Safe Working Load KN : 14.25
Wire Diameter : 0.444”
W- Width : 5-1/4
Ultimate Tensile Requirement KN : 57
Angel : 60°
Anchor Identification : 4/4
H : 3-1/8”
Typical Slab Thickness : 4”
FD - Foot Diameter : 15/16”

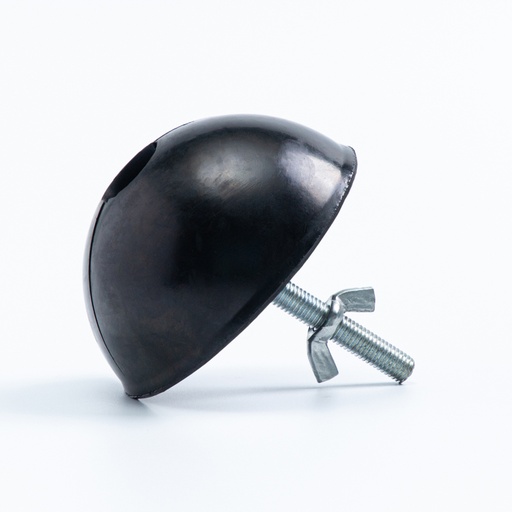

32T Recess Member for form work
Item#: OS-SHLARM-32T
$ 82.44 82.44 USD
Size : 32.0T
Wire Diameter : 50
Color : Black
20T Recess Member for form work
Item#: OS-SHLARM-20T
$ 25.90 25.900000000000002 USD
Weight (lbs) : 2.24
Size : 20.0T
Wire Diameter : 40
H : 3”
Color : Black
D - Diameter : 6-1/2”

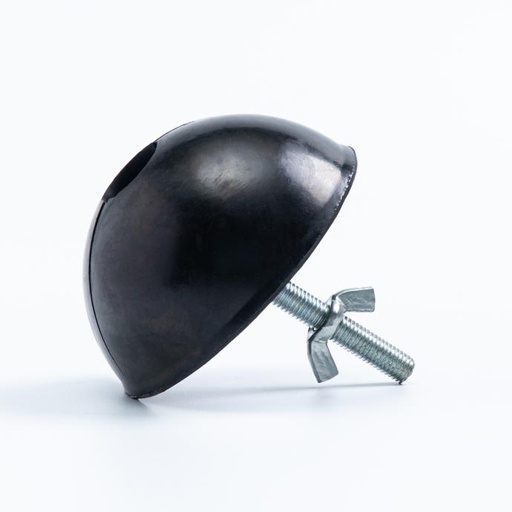

10T Recess Member for form work
Item#: OS-SHLARM-10T
$ 16.28 16.28 USD
Weight (lbs) : 1.12
Size : 10.0T
Wire Diameter : 28
H : 2-5/16”
Color : Yellow
D - Diameter : 5”
5T Recess Member for form work
Item#: OS-SHLARM-5T
$ 6.24 6.24 USD
Weight (lbs) : 0.55
Size : 5.0Т
Wire Diameter : 20
H : 1-13/16”
Color : Blue
D - Diameter : 3-3/4”
2.5T Recess Member for form work
Item#: OS-SHLARM-2.5T
$ 3.12 3.12 USD
Weight (lbs) : 0.30
Size : 2.5Т
Wire Diameter : 14
H : 1-9/16”
Color : Yellow
D - Diameter : 3”
1.3T Recess Member for Form Work
Item#: OS-SHLARM-1.3T
$ 1.66 1.6600000000000001 USD
Weight (lbs) : 0.15
Wire Diameter : 10
H : 1-3/16”
Color : Blue
D - Diameter : 2-3/8”
SIZE : 1.3T
12T-20T Lifting Eye
$ 517.80 517.8 USD
Weight (lbs) : 44.76
Load Class : 12-20T
Size : 20.0T
W : 7-11/16”
H : 3-7/16”
B (Min.) : 2.21”
D (Max.) : 1.87”
I (Min.) : 0.79”
LD (Min.) : 1.29”
Ultimate Capacity in Tension (lbs) : 200,000
L : 20”
T : 1-3/8”
6T-10T Lifting Eye
Item#: OS-LE-10T
$ 221.96 221.96 USD
Weight (lbs) : 22.15
Load Class : 6-10T
Size : 10.0T
W : 6-1/4”
H : 2-5/8”
B (Min.) : 1.42”
D (Max.) : 1.28”
I (Min.) : 0.50”
LD (Min.) : 1.03”
Ultimate Capacity in Tension (lbs) : 100,000
L : 15-1/2”
T : 1-1/16”
3T-5T Lifting Eye
Item#: OS-LE-5T
$ 119.32 119.32000000000001 USD
Weight (lbs) : 7.57
Load Class : 3-5T
Size : 5.0Т
W : 4-11/16”
H : 2-1/16”
B (Min.) : 1.10”
D (Max.) : 0.97”
I (Min.) : 0.31”
LD (Min.) : 0.73”
Ultimate Capacity in Tension (lbs) : 50,000
L : 11”
T : 11/16”
1.5T-2.5T Lifting Eye
Item#: OS-LE-2.5T
$ 85.59 85.59 USD
Weight (lbs) : 3.34
Load Class : 1.5T-2.5T
Size : 2.5Т
W : 3-1/2”
H : 1-1/2”
B (Min.) : 0.69”
D (Max.) : 0.71”
I (Min.) : 0.24”
LD (Min.) : 0.49”
Ultimate Capacity in Tension (lbs) : 25,000
L : 9”
T : 5/8”
1-1.3T Lifting Eye
Item#: OS-LE-1.3T
$ 64.91 64.91 USD
Weight (lbs) : 2.00
Load Class : 1-1.3T
Size : 1.3T
H : 1-1/16”
W : 3”
B (Min.) : 0.55”
D (Max.) : 0.51”
I (Min.) : 0.22”
LD (Min.) : 0.41”
L : 7-11/32”
T : 1/2”
Ultimate Capacity in Tension (lbs) : 13,000
20T Eye Anchor
Item#: OS-EA-20.0T-250
$ 17.64 17.64 USD
L - Length : 9-7/8”
Weight (lbs) : 7.23
Size : 20.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 160,000
FW - Foot Width : 3-5/16”
HD - Head Diameter : 2-3/4”
D - Hole Diameter : 1-9/16”
Tension w/ rebar (lbs) : 40,000
RD - Rod Diameter : 1-9/16”
8T Eye Anchor
Item#: OS-EA-10.0T-180
$ 6.98 6.98 USD
L - Length : 7-1/16”
Weight (lbs) : 2.71
Size : 8.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
FW - Foot Width : 2-3/8”
HD - Head Diameter : 1-7/8”
D - Hole Diameter : 1-1/8”
Tension w/ rebar (lbs) : 16,000
RD - Rod Diameter : 1-1/8”
4T Eye Anchor
Item#: OS-EA-5.0T-120
$ 3.17 3.17 USD
L - Length : 4-3/4”
Weight (lbs) : 0.90
Size : 4.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
FW - Foot Width : 1-11/16”
HD - Head Diameter : 1-7/16”
D - Hole Diameter : 7/8”
Tension w/ rebar (lbs) : 8000
RD - Rod Diameter : 3/4”
2T Eye Anchor
Item#: OS-EA-2.5T-90
$ 1.58 1.58 USD
L - Length : 3-1/2”
Weight (lbs) : 0.37
Size : 2T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
FW - Foot Width : 1-5/16”
HD - Head Diameter : 1-1/32”
D - Hole Diameter : 9/16”
Tension w/ rebar (lbs) : 4,000
RD - Rod Diameter : 9/16”
1T Eye Anchor
Item#: OS-EA-1.3T-65
$ 0.92 0.92 USD
L - Length : 2-9/16”
Weight (lbs) : 0.14
Size : 1T
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
FW - Foot Width : 7/8”
HD - Head Diameter : 3/4”
D - Hole Diameter : 3/8”
Tension w/ rebar (lbs) : 2,000
RD - Rod Diameter : 3/8”
32T x 27-1/2" Spherical Head Lifting Anchor
Item#: OS-SHLA-32.0T-700
$ 56.85 56.85 USD
Weight (lbs) : 29.63
Size : 32.0T
L : 27-1/2"
D : 1-11/12"
20T x 19-5/8" Spherical Head Lifting Anchor
Item#: OS-SHLA-20.0T-500
$ 25.14 25.14 USD
Weight (lbs) : 13.073
Size : 20.0T
L : 19-5/8"
D : 1-1/2"
