Rapid Lift System

  • L Anchor
  • 1 Ton Erection Anchor
  • Erection Head Anchors
  • Insulated Panel Anchors
  • Plate Anchors
  • Ring Clutches
  • Split Foot Erection Anchors
  • Spread Anchors
  • T Bar Anchors
  • Tech Anchor
  • Tech Erection Anchors
  • Two-Hole Anchors
  • Y Erection Anchors
  • Recess Members
  • Forged Erection Anchor
  • Forged Insulated Panel Anchor
2T Split Foot Erection Anchor
$ 2.60 2.6 USD
L - Length : 8”
Weight (lbs) : 1.65
W : 2”
Size : 2.0T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
S - Spread : 2-3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
N : 1-13/16”

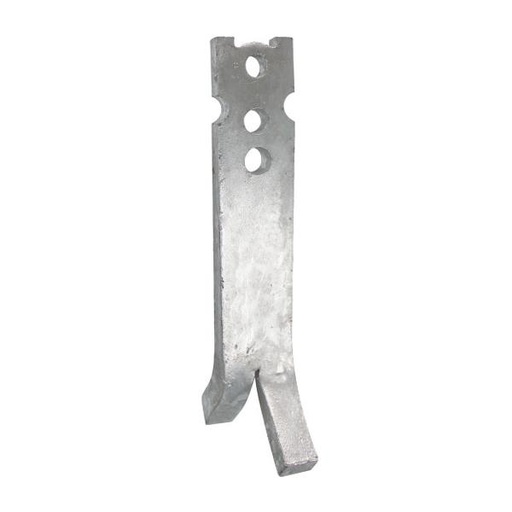

4T Split Foot Erection Anchor
$ 6.89 6.890000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 4.23
W : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
T - Thickness : 5/8”
S - Spread : 3-3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
N : 2-1/2”

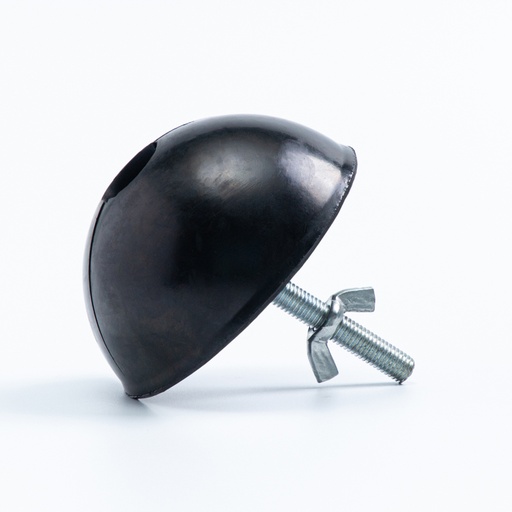

32T Recess Member for farm work
$ 82.44 82.44 USD
Size : 32.0T
Wire Diameter : 50
Color : Black
20T Recess Member for farm work
$ 25.90 25.900000000000002 USD
Weight (lbs) : 2.24
Size : 20.0T
Wire Diameter : 40
H : 3”
Color : Black
D - Diameter : 6-1/2”
10T Recess Member for farm work
$ 16.28 16.28 USD
Weight (lbs) : 1.12
Size : 10.0T
Wire Diameter : 28
H : 2-5/16”
Color : Yellow
D - Diameter : 5”

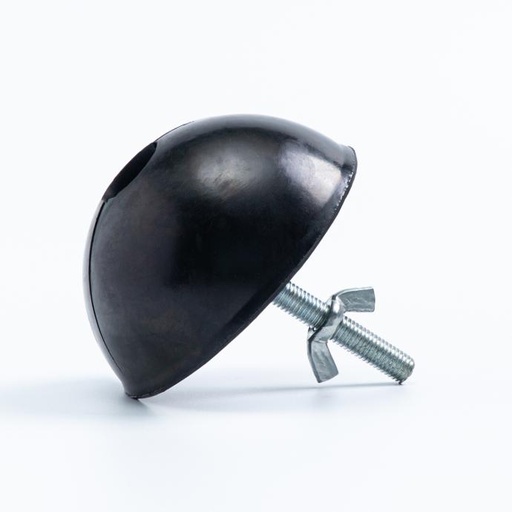

5T Recess Member for farm work
$ 6.24 6.24 USD
Weight (lbs) : 0.55
Size : 5.0Т
Wire Diameter : 20
H : 1-13/16”
Color : Blue
D - Diameter : 3-3/4”
2.5T Recess Member for farm work
$ 3.12 3.12 USD
Weight (lbs) : 0.30
Size : 2.5Т
Wire Diameter : 14
H : 1-9/16”
Color : Yellow
D - Diameter : 3”
1.3T Recess Member for farm work
$ 1.66 1.6600000000000001 USD
Weight (lbs) : 0.15
Wire Diameter : 10
H : 1-3/16”
Color : Blue
D - Diameter : 2-3/8”
SIZE : 1.3T

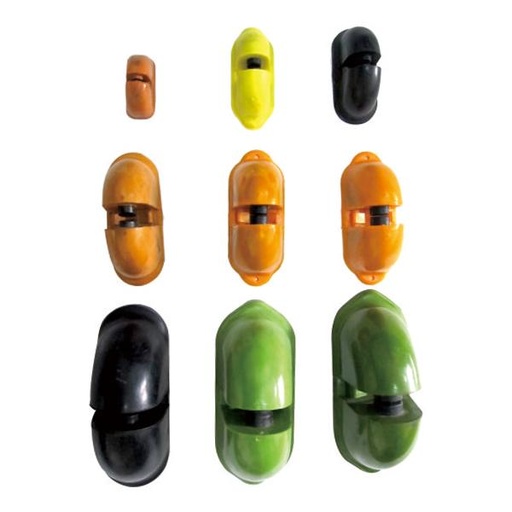

8-12T Recess Member for Erection Anchor
$ 16.98 16.98 USD
L - Length : 7-7/16”
Weight (lbs) : 1.25
W : 3-1/16”
Plate Thickness : 20
Size : 10.0T
H : 3-1/4”
Color : Green
D - Diameter : 1/2”
4-6T Recess Member for Erection Anchor
$ 5.67 5.67 USD
L - Length : 5”
Weight (lbs) : 0.44
W : 2-1/16”
Plate Thickness : 16
Size : 5.0Т
H : 2-7/16”
Ring Clutch System : 4-6T
Color : Orange
D - Diameter : 3/8”
2-3T Recess Member for Erection Anchor
$ 3.51 3.5100000000000002 USD
L - Length : 4-1/16”
Weight (lbs) : 0.22
W : 1-11/16”
Plate Thickness : 10
Size : 2.5Т
H : 1-7/8”
Ring Clutch System : 2-3T
Color : Yellow
D - Diameter : 3/8”
8-12T Ring Cluch
$ 231.30 231.3 USD
Weight (lbs) : 20.57
Load Class : 8-12T
H : 3-3/8”
W : 5-1/2”
Ultimate Capacity in Tension (lbs) : 120,000
L : 16-1/2”
T : 1”

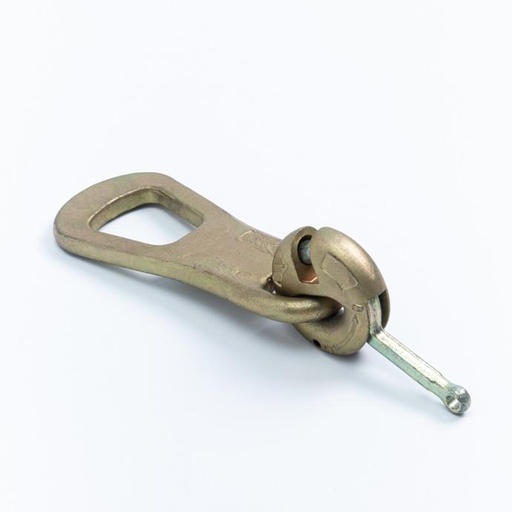

4-6T Ring Cluch
$ 81.77 81.77 USD
Weight (lbs) : 8.04
Load Class : 4-6T
Ultimate Tensile Requirement KN : 245
H : 3”
W : 4-7/16”
Ultimate Capacity in Tension (lbs) : 60,000
L : 13-1/4”
T : 5/8”
2-3T Ring Cluch
$ 46.72 46.72 USD
Weight (lbs) : 3.57
Load Class : 2-3T
Safe Working Load KN : 24.5
W : 3-3/4”
H : 2-1/2”
Ultimate Capacity in Tension (lbs) : 30,000
L : 10-5/16”
T : 1/2”
12.5T-22T Ring Cluch W/wire Cable
$ 513.99 513.99 USD
Weight (lbs) : 60.63
W : 8-7/8”
Safe Working Load KN : 215
Ultimate Tensile Requirement KN : 1150
H : 62”
Load Class(kg) : 12.5-22T
Ultimate Capacity in Tension (lbs) : 220,000

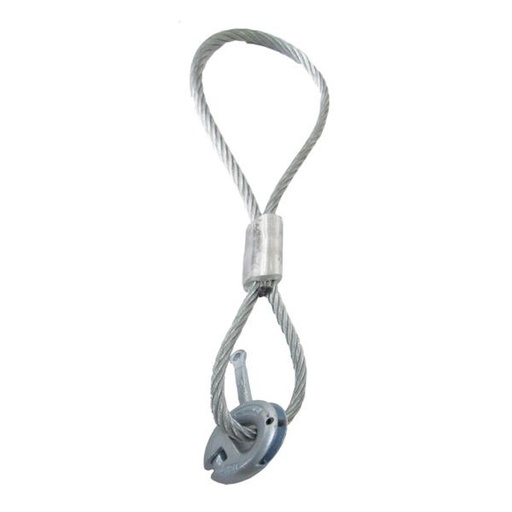

8T-12T Ring Cluch W/wire Cable
$ 210.26 210.26 USD
Weight (lbs) : 22.11
Load Class : 8-12T
W : 6-3/8”
Safe Working Load KN : 98
Ultimate Tensile Requirement KN : 490
H : 33-1/2”
Ultimate Capacity in Tension (lbs) : 120,000

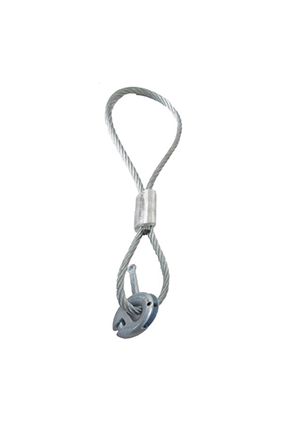

4T-6T Ring Cluch W/wire Cable
$ 70.10 70.10000000000001 USD
Weight (lbs) : 7.38
Load Class : 4-6T
W : 5-5/8”
Safe Working Load KN : 49
Ultimate Tensile Requirement KN : 245
H : 25-1/2”
Ultimate Capacity in Tension (lbs) : 60,000
2-3T Ring Cluch W/wire Cable
$ 39.73 39.730000000000004 USD
Weight (lbs) : 3.87
Load Class : 2-3T
W : 4-7/8”
Safe Working Load KN : 24.5
Ultimate Tensile Requirement KN : 122.5
H : 23-3/4”
Ultimate Capacity in Tension (lbs) : 30,000
1 Ton Erection Anchor
$ 0.65 0.65 USD
L - Length : 4-15/16”
Weight (lbs) : 0.34
W : 1-3/16”
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 918
4:1 SWL Shear w/ Shear Bar (lbs) : 611
Size : 1T
Ring Clutch System : 1T
D : 7/16”
T - Thickness : 1/4”
S - Spread : 1-3/4”
4:1 SWL Tension w/ Tension Bar (lbs) : 2,000
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
Min. Panel Thickness : 3”
4:1 SWL Tension w/o Tension Bar (lbs) : 1,160
N : 3/4”
Min. Corner Distance : 12”

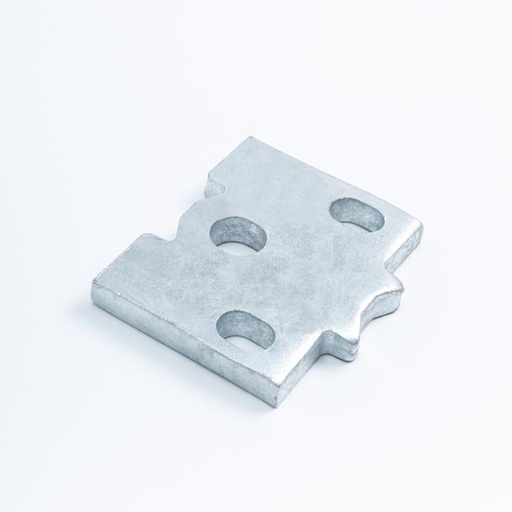

8Т Insulated Panel Anchor
$ 8.81 8.81 USD
L - Length : 4-3/4”
Weight (lbs) : 5.64
W : 6”
Size : 8.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
A : 3-1/2”
B : 4-3/8”
