Rapid Lift System

4T Insulated Panel Anchor
Item#: MPA-PA-4
$ 4.99 4.99 USD
L - Length : 3-1/4”
Weight (lbs) : 2.98
W : 6”
Size : 4.0T
T - Thickness : 5/8”
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
A : 1-13/16”
B : 4-3/8”

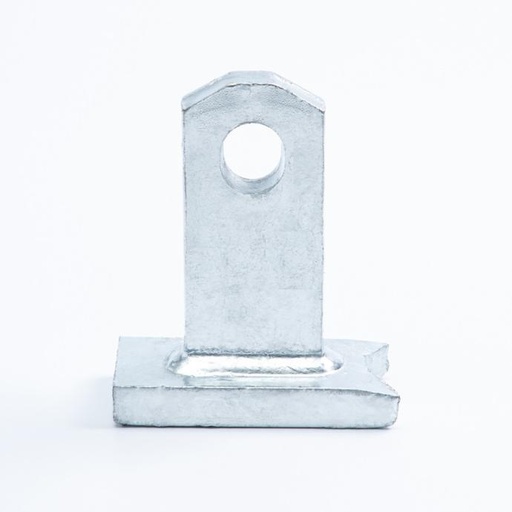

8T x 6-1/4" Plate Anchor
Item#: МРА-МР-10-158
$ 8.81 8.81 USD
Ton : 8T
Weight (lbs) : 5.45
W : 2-1/2”
Ring Clutch Systerm : 8T-12T
Shear Load (bs) : 6,350
L : 5”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
H : 6-1/4”
Tension Load (lbs) : 6,350
T : 3/4”
4T x 4-3/8" Plate Anchors
Item#: МРА-МР-5-110
$ 4.07 4.07 USD
Ton : 4T
Weight (lbs) : 1.92
W : 1-1/2"
Ring Clutch Systerm : 4T-6T
L : 3-7/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32000
Shear Load (lbs) : 4,730
H : 4-3/8”
Tension Load (lbs) : 4,730
T : 5/8”
2T x 2-1/4" Plate Anchors
Item#: MPA-MP-2.5-55
$ 2.54 2.54 USD
Ton : 2T
Weight (lbs) : 0.74
W : 1-1/4”
Ring Clutch Systerm : 2T-3T
Shear Load (bs) : 950
L : 3-3/4"
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
H : 2-1/4"
TensionLoad (lbs) : 950
T : 3/8"
22T Two-Hole Anchor
Item#: MPA-M2-22-300
$ 22.80 22.8 USD
L - Length : 11-3/4”
Weight (lbs) : 10.36
T - Thickness : 1-3/16”
W : 3-1/8”
Size : 22.0T
Ring Clutch System : 12.5T-22T
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Min. Panel Thickness : 7”
Reinforced Tension Load (lbs) : 44,000
A : 1-13/16”
B : 1-3/8”
C : 2-7/16”
8T Two-Hole Anchor
Item#: MPA-M2-8-180
$ 5.82 5.82 USD
L - Length : 7”
Weight (lbs) : 3.04
T - Thickness : 3/4”
W : 2-1/2”
Size : 8.0T
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
Min. Panel Thickness : 5”
Reinforced Tension Load (lbs) : 16,000
A : 1-3/16”
B : 1”
C : 1-7/16”
4T Two-Hole Anchor
Item#: MPA-M2-4-120
$ 2.31 2.31 USD
L - Length : 5-1/2”
Weight (lbs) : 1.23
T - Thickness : 5/8”
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 4”
Reinforced Tension Load (lbs) : 8,000
A : 7/8”
B : 11/16”
C : 15/16”
2T Two-Hole Anchor
Item#: MPA-M2-2-100
$ 0.96 0.96 USD
L - Length : 4”
Weight (lbs) : 0.44
T - Thickness : 3/8”
W : 1-1/4”
Size : 2.0T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
Min. Panel Thickness : 2-3/4”
A : 3/4”
B : 9/16”
C : 7/8”
Reinforced Tension Load (lbs) : 4,000
22T×19-5/8" Spread Anchor
Item#: MPA-MS-22-500
$ 43.12 43.12 USD
L - Length : 19-5/8”
Weight (lbs) : 21.60
T - Thickness : 1-3/16”
W : 3-1/2”
Size : 22.0T
Ring Clutch Systerm : 12.5T-22T
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Unreinforced Shear Load (lbs) : 44,000
Spread : 6-1/4”
Unreinforced Tension Load (lbs) : 44,000
A : 9-7/8”

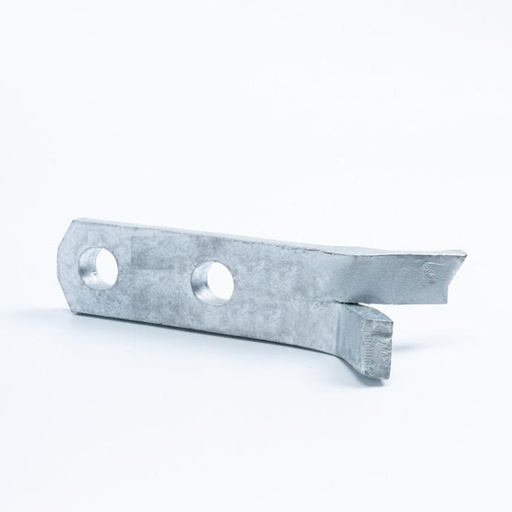

8T x 11" Spread Anchor
Item#: MPA-MS-8-280
$ 12.71 12.71 USD
L - Length : 11”
Weight (lbs) : 5.50
T - Thickness : 3/4”
W : 2-1/2”
Size : 8.0T
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
Unreinforced Shear Load (lbs) : 16,000
Spread : 4-1/2”
Unreinforced Tension Load (lbs) : 16,000
A : 5”
4T x 6-1/4" Spread Anchor
Item#: MPA-MS-4-160
$ 3.29 3.29 USD
L - Length : 6-1/4”
Weight (lbs) : 1.59
T - Thickness : 5/8"
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Unreinforced Shear Load (lbs) : 5,850
Spread : 3-3/8”
Unreinforced Tension Load (lbs) : 5,850
2T x 5-1/2" Spread Anchor
Item#: MPA-MS-2-140
$ 1.64 1.6400000000000001 USD
L - Length : 5-1/2”
Weight (lbs) : 0.75
T - Thickness : 3/8”
W : 1-1/4”
Size : 2T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
Unreinforced Shear Load (lbs) : 4,000
Spread : 2-3/4”
Unreinforced Tension Load (lbs) : 4,000
1T x 4-3/4" Spread Anchor
Item#: MPA-MS-1-120
$ 0.68 0.68 USD
L - Length : 4-3/4”
Weight (lbs) : 0.33
T - Thickness : 3/16”
W : 1-1/4”
Size : 1T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
Unreinforced Shear Load (lbs) : 2,000
Spread : 2-3/4”
Unreinforced Tension Load (lbs) : 2,000
Y Erection Anchor 22T
Item#: МРА-МА-22-500
$ 58.79 58.79 USD
L - Length : 19-5/8”
Weight (lbs) : 23.11
T - Thickness : 1-1/8"
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 27,890
4:1 SWL Shear w/ Shear Bar (lbs) : 18,547
Size : 22.0T
Ring Clutch System : 12.5T-22T
D : 1-3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Minimum Panel Thickness : 14”
4:1 SWL Tension w/ Tension Bar (lbs) : 44,000
S - Spread : 3-1/8”
N : 3-1/2”
Minimum Edge Distance : 36”
Minimum Anchor Spacing : 72”
Y Erection Anchor 17T
Item#: MPA-MA-17-500
$ 51.20 51.2 USD
L - Length : 19-5/8”
Weight (lbs) : 20.09
T - Thickness : 1”
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 21,551
4:1 SWL Shear w/ Shear Bar (lbs) : 14,332
Size : 17.0Т
Ring Clutch System : 12.5T-22T
D : 1-3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 136,000
Minimum Panel Thickness : 12”
4:1 SWL Tension w/ Tension Bar (lbs) : 34,000
S - Spread : 3-1/8”
Minimum Edge Distance : 36”
N : 3-1/2”
Minimum Anchor Spacing : 72”
Y Erection Anchor 12.5T
Item#: МРА-МА-12.5-500
$ 42.38 42.38 USD
L - Length : 19-5/8”
Weight (lbs) : 15.08
T - Thickness : 3/4"
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 15,846
4:1 SWL Shear w/ Shear Bar (lbs) : 10,538
Size : 12.5Т
Ring Clutch System : 12.5T-22T
D : 1-3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 100,000
Minimum Panel Thickness : 10”
4:1 SWL Tension w/ Tension Bar (lbs) : 25,000
S - Spread : 3-1/8"
N : 3-1/2"
Minimum Edge Distance : 30”
Minimum Anchor Spacing : 60”
8T Split Foot Erection Anchor
Item#: МРА-МЕ-8-325
$ 15.03 15.030000000000001 USD
L - Length : 12-13/16”
Weight (lbs) : 8.99
W : 3-3/4”
Size : 8.0T
Ring Clutch System : 8T-12T
T - Thickness : 3/4”
S - Spread : 5”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
N : 3-1/8”
10T x 7" Insulated Panel Anchor,W/Shear Plate
Item#: MAP-PA-IP-10
$ 16.15 16.15 USD
L - Length : 4-3/4”
Weight (lbs) : 10.27
W : 7"
Size : 10.0T
SPW - Shear Plate Width : 8”
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
SPT - Shear Plate Thickness : 1/2”
A : 3-3/8”
B : 4-3/8”
2T Tech Erection Anchor W/Shear Plate
Item#: MAP-TEAN-SP-2
$ 3.41 3.41 USD
L - Length : 8-11/16”
Weight (lbs) : 2.04
W - Width : 2”
Size : 2T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 2T-3T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
SPT - Shear Plate Thickness : 1/4”
T : 3/8”
A : 5/8”
B : 2-5/8”
N : 1-13/16”
4T Tech Erection Anchor
Item#: MAP-TEAN-4
$ 5.82 5.82 USD
L - Length : 10-7/16”
Weight (lbs) : 3.73
W : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
D : 3/4”
T - Thickness : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
A : 3/4”
N : 2-1/2”
B : 2-5/8”
