Y Erection Anchors

Y Erection Anchor 22T
Item#: МРА-МА-22-500
$ 58.79 58.79 USD
L - Length : 19-5/8”
Weight (lbs) : 23.11
T - Thickness : 1-1/8"
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 27,890
4:1 SWL Shear w/ Shear Bar (lbs) : 18,547
Size : 22.0T
Ring Clutch System : 12.5T-22T
D : 1-3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Minimum Panel Thickness : 14”
4:1 SWL Tension w/ Tension Bar (lbs) : 44,000
S - Spread : 3-1/8”
N : 3-1/2”
Minimum Edge Distance : 36”
Minimum Anchor Spacing : 72”

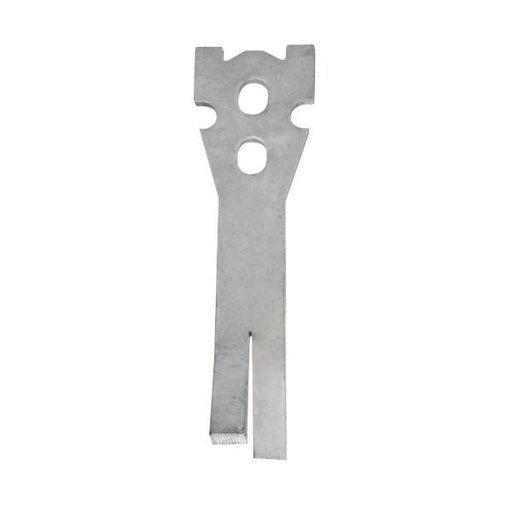

Y Erection Anchor 17T
Item#: MPA-MA-17-500
$ 51.20 51.2 USD
L - Length : 19-5/8”
Weight (lbs) : 20.09
T - Thickness : 1”
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 21,551
4:1 SWL Shear w/ Shear Bar (lbs) : 14,332
Size : 17.0Т
Ring Clutch System : 12.5T-22T
D : 1-3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 136,000
Minimum Panel Thickness : 12”
4:1 SWL Tension w/ Tension Bar (lbs) : 34,000
S - Spread : 3-1/8”
Minimum Edge Distance : 36”
N : 3-1/2”
Minimum Anchor Spacing : 72”
Y Erection Anchor 12.5T
Item#: МРА-МА-12.5-500
$ 42.38 42.38 USD
L - Length : 19-5/8”
Weight (lbs) : 15.08
T - Thickness : 3/4"
W : 5-7/8"
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 15,846
4:1 SWL Shear w/ Shear Bar (lbs) : 10,538
Size : 12.5Т
Ring Clutch System : 12.5T-22T
D : 1-3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 100,000
Minimum Panel Thickness : 10”
4:1 SWL Tension w/ Tension Bar (lbs) : 25,000
S - Spread : 3-1/8"
N : 3-1/2"
Minimum Edge Distance : 30”
Minimum Anchor Spacing : 60”
