Forged Erection Anchor

Forged Erection Anchors (MAP-SFEA family) are solid-steel die-forged erection anchors that carry higher tensile capacity and better fatigue resistance than cast or welded alternatives. OCS carries the MAP-SFEA line in 3T, 6T, and 12T ratings, with matched Shear Plate and Shear Bar variants for critical erection lifts. Applications include high-cycle precast panel erection, tilt-up wall systems, and structural precast where the pick load exceeds the rating of a standard split-foot anchor. Every SKU is proof-load tested per batch and meets OSHA 29 CFR 1926.704.

3T Forged Erection Anchor
Item#: MAP-SFEA-3
$ 4.20 4.2 USD
L - Length : 8”
Weight (lbs) : 1.27
W : 2-3/8”
Size : 3T
Ring Clutch System : 2T-3T
D : 9
T - Thickness : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 24,000
N : 1-13/16”

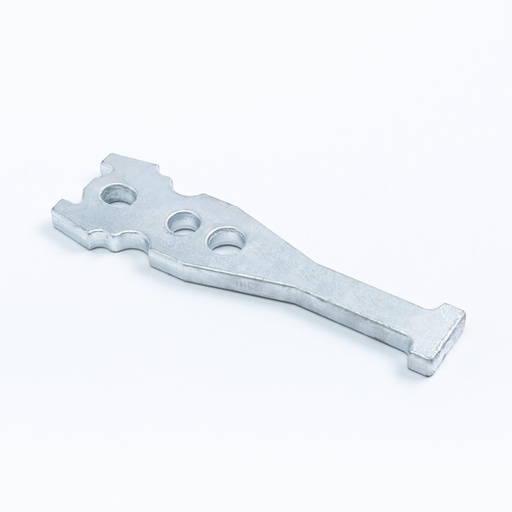

6T Forged Erection Anchor
Item#: MAP-SFEA-6
$ 7.93 7.930000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 2.94
W : 3-3/16”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
N : 2-1/2”
12T Forged Erection Anchor
Item#: MAP-SFEA-12
$ 15.05 15.05 USD
L - Length : 12-1/2”
Weight (lbs) : 5.10
W : 3-3/4”
Size : 12T
Ring Clutch System : 8T-12T
D : 1-3/16”
T - Thickness : 3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 96,000
N : 3-1/8”
6T x 3-5/8"Forged Erection Anchor with Shear Bar
Item#: MAP-SFEA-SB-6
$ 8.68 8.68 USD
L - Length : 10-1/2”
Weight (lbs) : 3.59
W : 3-5/8”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SBD - Shear Bar Diameter : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48000
SBL - Shear Bar Length : 6”
N : 2-1/2”
6T x 4-1/8" Forged Erection Anchor with Shear Bar
Item#: MAP-SFEA-SB-6S
$ 8.87 8.870000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 4.18
W : 4-1/8”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SBD - Shear Bar Diameter : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
SBL - Shear Bar Length : 6”
N : 2-1/2”
3T Forged Erection Anchor with Shear Plate
Item#: MAP-SFEA-SP-3
$ 6.11 6.11 USD
L - Length : 8”
Weight (lbs) : 2.10
W : 2-5/16”
Size : 3T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 2T-3T
D : 5/8”
T - Thickness : 3/8”
SPL - Shear Plate Length : 3-1/2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 24,000
SPT - Shear Plate Thickness : 7/16”
6T Forged Erection Anchor with Shear Plate
Item#: MAP-SFEA-SP-6
$ 12.06 12.06 USD
L - Length : 10-1/2”
Weight (lbs) : 4.58
W : 2-15/16”
Size : 6T
SPW - Shear Plate Width : 3-1/8”
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SPL - Shear Plate Length : 4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
SPT - Shear Plate Thickness : 1/2”
