Rapid Lift System

2T Tech Anchor
Item#: MAP-TAN-2
$ 1.21 1.21 USD
L - Length : 4-15/16”
Weight (lbs) : 0.50
W : 1-1/4”
Size : 2T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
T : 3/8”
4T x 7-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-84
$ 3.68 3.68 USD
L - Length : 7-1/4”
Weight (lbs) : 1.98
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 8”
T : 5/8”
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 14-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”
4T x 6-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-59
$ 2.89 2.89 USD
L - Length : 6-1/4”
Weight (lbs) : 1.68
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 7”
T : 5/8”
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 12-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”
4T x 5-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-33
$ 2.75 2.75 USD
L - Length : 5-1/4”
Weight (lbs) : 1.46
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32000
Min. Panel Thickness : 6”
T : 5/8"
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 10-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”
4T x 4-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-08
$ 2.45 2.45 USD
L - Length : 4-1/4”
Weight (lbs) : 1.20
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 5”
T : 5/8”
Unreinforced Shear Load (lbs) : 5,500
Min. Edge Distance : 8-1/2”
Unreinforced Tension Load (lbs) : 5,500
D : 11/16”
2T x 4" T-Bar Anchor
Item#: MAP-TBAN-2
$ 1.27 1.27 USD
L - Length : 4”
Weight (lbs) : 0.66
W : 1-1/4”
Size : 2T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
Min. Panel Thickness : 4-3/4”
T : 3/8”
Unreinforced Shear Load (lbs) : 4,000
D : 1/2”
Min. Edge Distance : 8”
Unreinforced Tension Load (lbs) : 4,000
8T x 7-1/8" Plate Anchor
Item#: MPA-MP-10-180
$ 10.45 10.450000000000001 USD
Ton : 8T
Weight (lbs) : 5.94
W : 2-1/2"
Ring Clutch Systerm : 8T-12T
Shear Load (bs) : 10000
L : 5"
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
H : 7-1/8”
Tension Load (lbs) : 10000
T : 3/4"
4T x 3" Plate Anchor
Item#:MPA-MP-5-76
$ 3.35 3.35 USD
Ton : 4T
Weight (lbs) : 1.23
W : 1-1/2"
Ring Clutch Systerm : 4T-6T
Shear Load (bs) : 3,570
L : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
H : 3”
Tension Load (lbs) : 3,570
T : 5/8"

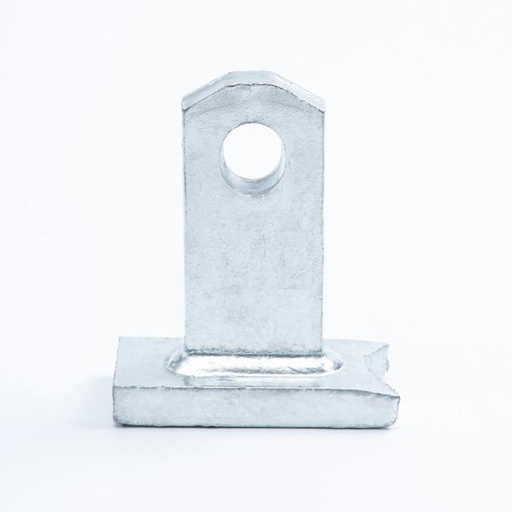

4T x 3-1/2" Plate Anchor
Item#: MPA-MP-5-90
$ 3.47 3.47 USD
Ton : 4T
Weight (lbs) : 1.43
W : 2-1/2"
Ring Clutch Systerm : 4T-6T
Shear Load (bs) : 4,700
L : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
H : 3-1/2”
Tension Load (lbs) : 4,700
T : 5/8”

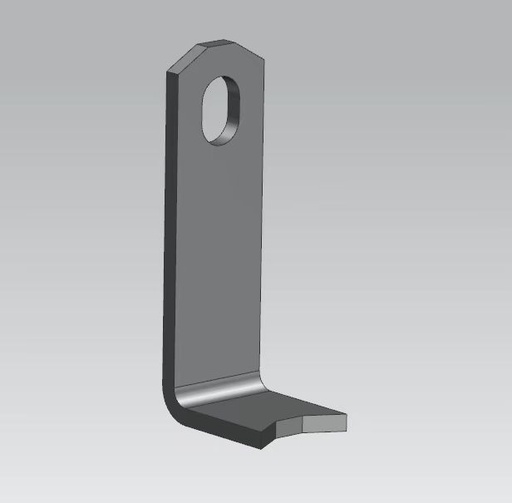

1T x 4" L Anchor
Item#: MAP-LAN-1
$ 0.73 0.73 USD
L - Length : 4”
Weight (lbs) : 0.36
W - Width : 1-1/4”
FL - Foot Length : 1-7/16”
Size : 1T
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
T : 3/16”
Ring Clutch System : 2T-3T
Unreinforced Tension Load (lbs) : 2,000
Unreinforced Shear Load (lbs) : 2,000
2T Erection Head Anchor
Item#: MAP-EHA-2
$ 1.22 1.22 USD
L - Length : 4-1/4”
Weight (lbs) : 0.72
W : 2”
Size : 2T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
A : 2-3/8”
B : 1-3/32”
N : 1-13/16”

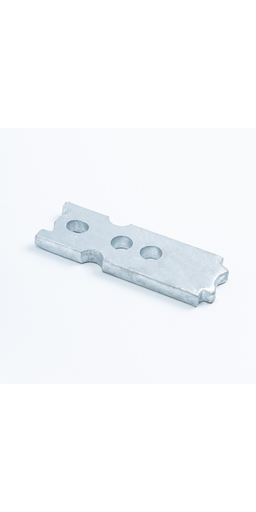

4T Erection Head Anchor
Item#: MAP-EHA-4
$ 4.32 4.32 USD
L - Length : 7-7/16”
W : 2-1/2”
Size : 4.0T
Weight (lbs) : 2.72
Ring Clutch System : 4T-6T
T - Thickness : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
A : 3-3/16”
B : 1-1/4”
N : 2-1/2”
2T Erection Head Anchor W/Shear Plate
Item#: MAP-EHA-SP-2
$ 2.09 2.09 USD
L - Length : 8-11/16”
Weight (lbs) : 2.04
W - Width : 2”
Size : 2T
SPW - Shear Plate Width : 2-1/2"
Ring Clutch System : 2T-3T
SPL - Shear Plate Length : 3"
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
SPT - Shear Plate Thickness : 1/4”
T : 3/8”
A : 5/8”
B : 2-5/8”
N : 1-13/16”

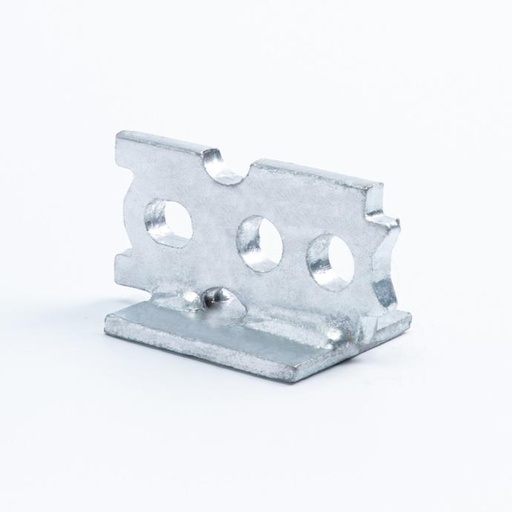

4T Erection Head Anchor W/Shear Plate
Item#: MAP-EHA-SP-4
$ 6.77 6.7700000000000005 USD
L - Length : 10-7/16”
Weight (lbs) : 4.49
W - Width : 2-1/2”
Size : 4.0T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 4T-6T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
SPT - Shear Plate Thickness : 3/8”
T : 5/8”
A : 3/4”
B : 2-5/8”
N : 2-1/2”
8T Erection Head Anchor W/Shear Plate
Item#: MAP-EHA-SP-8
$ 15.68 15.68 USD
L - Length : 13-1/2”
Weight (lbs) : 9.94
W - Width : 3-3/4”
Size : 8.0T
SPW - Shear Plate Width : 3”
Ring Clutch System : 8T-12T
SPL - Shear Plate Length : 3-1/2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
SPT - Shear Plate Thickness : 3/8”
T : 3/4”
A : 1”
B : 3-5/8”
N : 3-1/8”

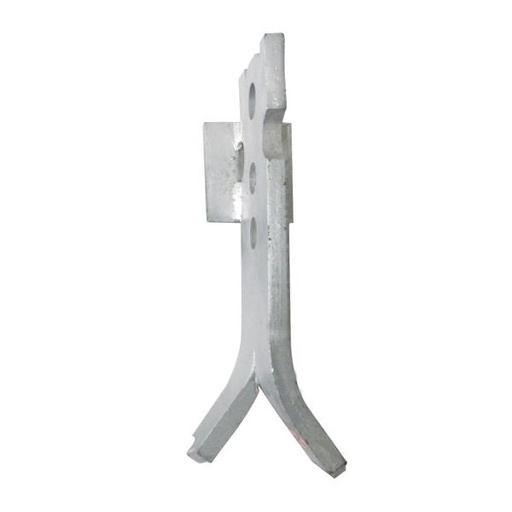

8T Split Foot Erection Anchor with Shear Plate
Item#: MAP-EA-SP-8
$ 16.54 16.54 USD
L - Length : 12-13/16”
Weight (lbs) : 10.49
W - Width : 3-3/4”
Size : 8.0T
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
T : 3/4”
2T Split Foot Erection Anchor with Shear Plate
Item#: MAP-EA-SP-2
$ 3.48 3.48 USD
L - Length : 8”
Weight (lbs) : 2.12
Load Class : 2 T
W - Width : 2”
Size : 2T
Ring Clutch System : 2-3T
W（Kg） : 0.984
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
T : 3/8”

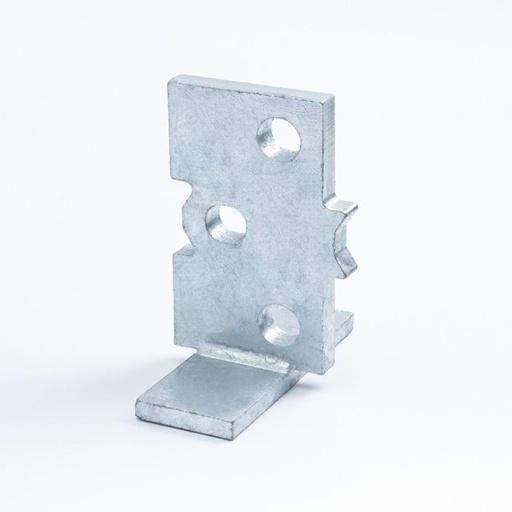

4T Insulated Panel Anchor with Shear Plate
Item#: MAP-PA-SP-4
$ 4.13 4.13 USD
L - Length : 3-1/4”
Weight (lbs) : 2.34
W : 4”
Size : 4.0T
SPW - Shear Plate Width : 3”
Ring Clutch Systerm : 4T-6T
T - Thickness : 5/8”
SPL - Shear Plate Length : 2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
SPT - Shear Plate Thickness : 1/4”
A : 2-5/16”
B : 2-3/8”

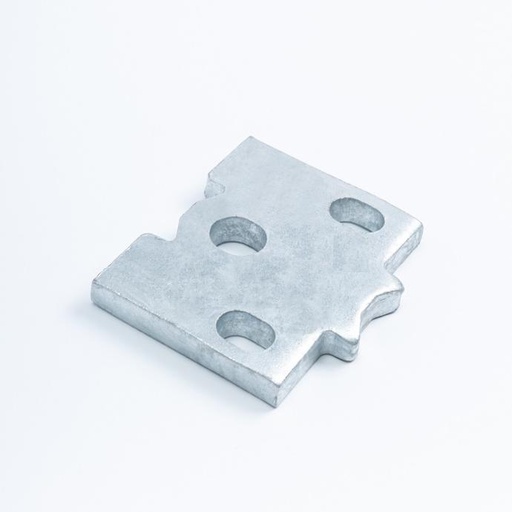

10T x 7" Insulated Panel Anchor
Item#: MPA-PA-10
$ 11.05 11.05 USD
L - Length : 4-3/4”
Weight (lbs) : 6.51
W : 7”
Size : 10.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
A : 3-3/8”
B : 4-3/8”
10T x 8" Insulated Panel Anchor
Item#: MPA-PA-10EX
$ 20.28 20.28 USD
L - Length : 4-3/4”
Weight (lbs) : 7.49
W : 8”
Size : 10.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
A : 3-3/8”
B : 5-1/2”
