Tech Erection Anchors

2T Tech Erection Anchor W/Shear Plate
Item#: MAP-TEAN-SP-2
$ 3.41 3.41 USD
L - Length : 8-11/16”
Weight (lbs) : 2.04
W - Width : 2”
Size : 2T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 2T-3T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
SPT - Shear Plate Thickness : 1/4”
T : 3/8”
A : 5/8”
B : 2-5/8”
N : 1-13/16”

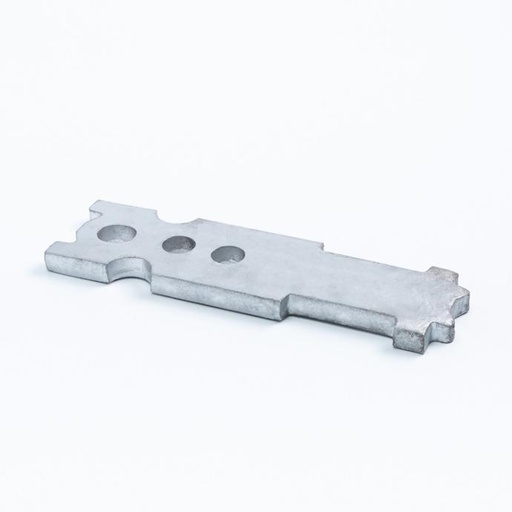

4T Tech Erection Anchor
Item#: MAP-TEAN-4
$ 5.82 5.82 USD
L - Length : 10-7/16”
Weight (lbs) : 3.73
W : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
D : 3/4”
T - Thickness : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
A : 3/4”
N : 2-1/2”
B : 2-5/8”
2T Tech Erection Anchor
Item#: MAP-TEAN-2
$ 2.55 2.5500000000000003 USD
L - Length : 8-11/16”
Weight (lbs) : 1.53
W : 2”
Size : 2T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
A : 5/8”
B : 2-5/8”
N : 1-13/16”
8T Tech Erection Anchor
Item#: MAP-TEAN-8
$ 13.65 13.65 USD
L - Length : 13-1/2”
Weight (lbs) : 8.48
W : 3-3/4”
Size : 8.0T
Ring Clutch System : 8T-12T
T - Thickness : 3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
A : 1”
B : 3-5/8”
N : 3-1/8”

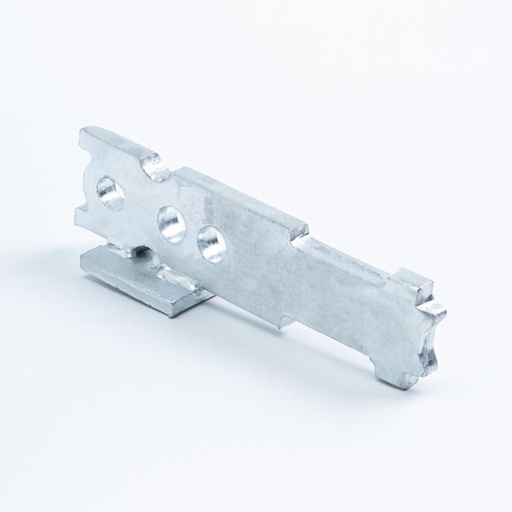

4T Tech Erection Anchor W/Shear Plate
Item#: MAP-TEAN-SP-4
$ 7.23 7.23 USD
L - Length : 10-7/16”
Weight (lbs) : 4.49
W - Width : 2-1/2”
Size : 4.0T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 4T-6T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
SPT - Shear Plate Thickness : 3/8”
T : 5/8”
A : 3/4”
B : 2-5/8”
N : 2-1/2”
8T Tech Erection Anchor W/Shear Plate
Item#: MAP-TEAN-SP-8
$ 15.55 15.55 USD
L - Length : 13-1/2”
Weight (lbs) : 9.94
W - Width : 3-3/4”
Size : 8.0T
SPW - Shear Plate Width : 3”
Ring Clutch System : 8T-12T
SPL - Shear Plate Length : 3-1/2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
SPT - Shear Plate Thickness : 3/8”
T : 3/4”
A : 1”
B : 3-5/8”
N : 3-1/8”
