Lifting Pin System

  • Lifting Pin Anchors
  • Lifting Eyes
  • Lifting Pin Eye Anchors
12T-20T Lifting Eye
$ 467.27 467.27 USD
Weight (lbs) : 44.76
Load Class : 12-20T
Size : 20.0T
W : 7-11/16”
H : 3-7/16”
B (Min.) : 2.21”
D (Max.) : 1.87”
I (Min.) : 0.79”
LD (Min.) : 1.29”
Ultimate Capacity in Tension (lbs) : 200,000
L : 20”
T : 1-3/8”
6T-10T Lifting Eye
$ 221.96 221.96 USD
Weight (lbs) : 22.15
Load Class : 6-10T
Size : 10.0T
W : 6-1/4”
H : 2-5/8”
B (Min.) : 1.42”
D (Max.) : 1.28”
I (Min.) : 0.50”
LD (Min.) : 1.03”
Ultimate Capacity in Tension (lbs) : 100,000
L : 15-1/2”
T : 1-1/16”
3T-5T Lifting Eye
$ 81.77 81.77 USD
Weight (lbs) : 7.57
Load Class : 3-5T
Size : 5.0Т
W : 4-11/16”
H : 2-1/16”
B (Min.) : 1.10”
D (Max.) : 0.97”
I (Min.) : 0.31”
LD (Min.) : 0.73”
Ultimate Capacity in Tension (lbs) : 50,000
L : 11”
T : 11/16”

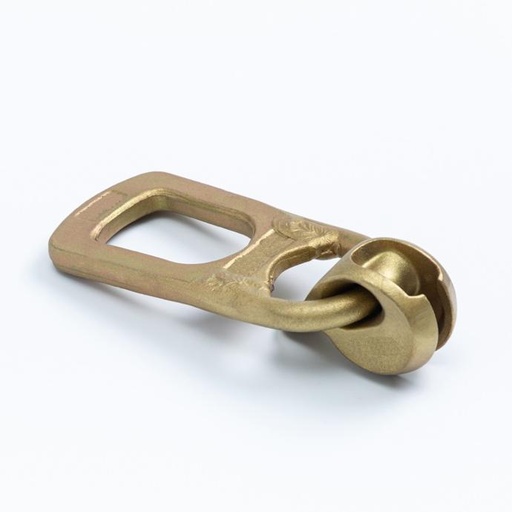

1.5T-2.5T Lifting Eye
$ 35.05 35.050000000000004 USD
Weight (lbs) : 3.34
Load Class : 1.5T-2.5T
Size : 2.5Т
W : 3-1/2”
H : 1-1/2”
B (Min.) : 0.69”
D (Max.) : 0.71”
I (Min.) : 0.24”
LD (Min.) : 0.49”
Ultimate Capacity in Tension (lbs) : 25,000
L : 9”
T : 5/8”
1-1.3T Lifting Eye
$ 23.37 23.37 USD
Weight (lbs) : 2.00
Load Class : 1-1.3T
Size : 1.3T
H : 1-1/16”
W : 3”
B (Min.) : 0.55”
D (Max.) : 0.51”
I (Min.) : 0.22”
LD (Min.) : 0.41”
L : 7-11/32”
T : 1/2”
Ultimate Capacity in Tension (lbs) : 13,000
20T Eye Anchor
$ 17.08 17.080000000000002 USD
L - Length : 9-7/8”
Weight (lbs) : 7.23
Size : 20.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 160,000
FW - Foot Width : 3-5/16”
HD - Head Diameter : 2-3/4”
D - Hole Diameter : 1-9/16”
Tension w/ rebar (lbs) : 40,000
RD - Rod Diameter : 1-9/16”

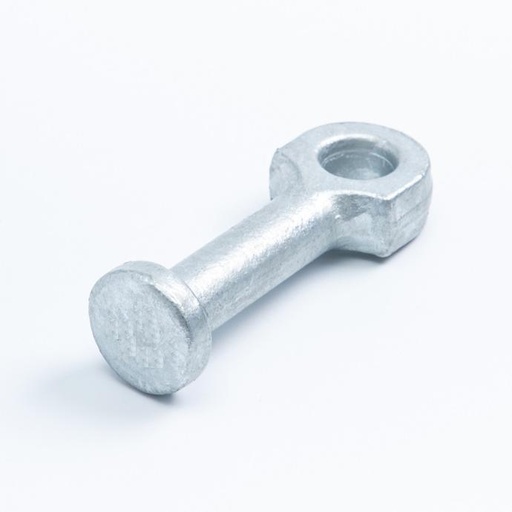

8T Eye Anchor
$ 5.82 5.82 USD
L - Length : 7-1/16”
Weight (lbs) : 2.71
Size : 8.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
FW - Foot Width : 2-3/8”
HD - Head Diameter : 1-7/8”
D - Hole Diameter : 1-1/8”
Tension w/ rebar (lbs) : 16,000
RD - Rod Diameter : 1-1/8”
4T Eye Anchor
$ 2.26 2.2600000000000002 USD
L - Length : 4-3/4”
Weight (lbs) : 0.90
Size : 4.0T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
FW - Foot Width : 1-11/16”
HD - Head Diameter : 1-7/16”
D - Hole Diameter : 7/8”
Tension w/ rebar (lbs) : 8000
RD - Rod Diameter : 3/4”
2T Eye Anchor
$ 1.07 1.07 USD
L - Length : 3-1/2”
Weight (lbs) : 0.37
Size : 2T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
FW - Foot Width : 1-5/16”
HD - Head Diameter : 1-1/32”
D - Hole Diameter : 9/16”
Tension w/ rebar (lbs) : 4,000
RD - Rod Diameter : 9/16”
1T Eye Anchor
$ 0.68 0.68 USD
L - Length : 2-9/16”
Weight (lbs) : 0.14
Size : 1T
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
FW - Foot Width : 7/8”
HD - Head Diameter : 3/4”
D - Hole Diameter : 3/8”
Tension w/ rebar (lbs) : 2,000
RD - Rod Diameter : 3/8”

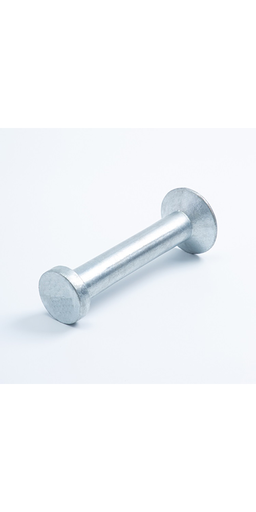

32T Spherical Head Lifting Anchor
$ 56.85 56.85 USD
Size : 32.0T
L : 27-1/2"
D : 1-11/12"
W（Kg） : 13.44
20T Spherical Head Lifting Anchor
$ 25.14 25.14 USD
Size : 20.0T
L : 19-5/8"
D : 1-1/2"
W（Kg） : 5.93
20T Spherical Head Lifting Anchor
$ 15.62 15.620000000000001 USD
Size : 20.0T
L : 9-7/8"
D : 1-1/2"
W（Kg） : 4.37
20T Spherical Head Lifting Anchor
$ 14.26 14.26 USD
Size : 20.0T
L : 7-7/8"
D : 1-1/2"
W（Kg） : 2.99

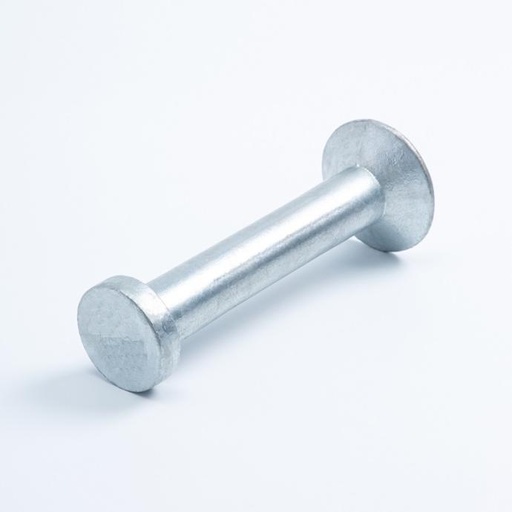

10T Spherical Head Lifting Anchor
$ 12.69 12.69 USD
Size : 10.0T
L : 26-3/4"
D : 1-1/10"
W（Kg） : 3.57
10T Spherical Head Lifting Anchor
$ 7.07 7.07 USD
Size : 10.0T
L : 13-1/3"
D : 1-1/10"
W（Kg） : 1.98
10T Spherical Head Lifting Anchor
$ 5.64 5.64 USD
Size : 10.0T
L : 9-7/8"
D : 1-1/10"
W（Kg） : 1.56
10T Spherical Head Lifting Anchor
$ 4.94 4.94 USD
Size : 10.0T
L : 7-7/8"
D : 1-1/10"
W（Kg） : 1.321
10T Spherical Head Lifting Anchor
$ 5.23 5.23 USD
Size : 10.0T
L : 8-5/8"
D : 1-1/10"
W（Kg） : 1.44
10T Spherical Head Lifting Anchor
$ 4.68 4.68 USD
Size : 10.0T
L : 7"
D : 1-1/10"
W（Kg） : 1.2
