Lifting And Handling

Lifting and Handling covers the complete OCS catalogue of precast concrete lifting hardware — from spherical head lifting anchors and forged erection anchors to matching ring clutches, lifting eyes, and utility anchors. Every product in this category is manufactured to meet OSHA 29 CFR 1926.704 safety factors and stocked across four U.S. distribution hubs for 1–2 day delivery. Browse by product family below, or contact our engineering team for custom lifting solutions matched to your panel geometry.

1.3T x 1-3/4" Spherical Head Lifting Anchor
Item#: OS-SHLA-1.3T-45
$ 0.30 0.3 USD
Weight (lbs) : 0.117
Size : 1.3T
L : 1-3/4"
D : 2/5”
1.3T x 1-3/8" Spherical Head Lifting Anchor
Item#: OS-SHLA-1.3T-35
$ 0.28 0.28 USD
Weight (lbs) : 0.097
Size : 1.3T
L : 1-3/8"
D : 2/5”

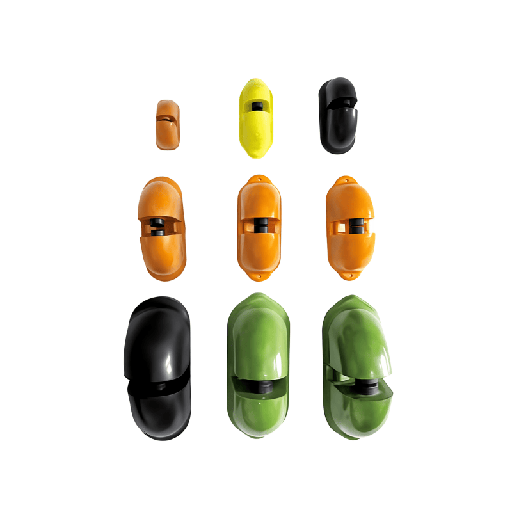

8-12T Recess Member for Erection Anchor
Item#: OS-EARM-10T-GRE
$ 16.98 16.98 USD
L - Length : 7-7/16”
Weight (lbs) : 1.25
W : 3-1/16”
Plate Thickness : 20
Size : 10.0T
H : 3-1/4”
Color : Green
D - Diameter : 1/2”
4-6T Recess Member for Erection Anchor
Item#: OS-EARM-5T-ORA
$ 5.67 5.67 USD
L - Length : 5”
Weight (lbs) : 0.44
W : 2-1/16”
Plate Thickness : 16
Size : 5.0Т
H : 2-7/16”
Ring Clutch System : 4-6T
Color : Orange
D - Diameter : 3/8”
2-3T Recess Member for Erection Anchor
Item#: OS-EARM-2.5T-YEL
$ 3.51 3.5100000000000002 USD
L - Length : 4-1/16”
Weight (lbs) : 0.22
W : 1-11/16”
Plate Thickness : 10
Size : 2.5Т
H : 1-7/8”
Ring Clutch System : 2-3T
Color : Yellow
D - Diameter : 3/8”

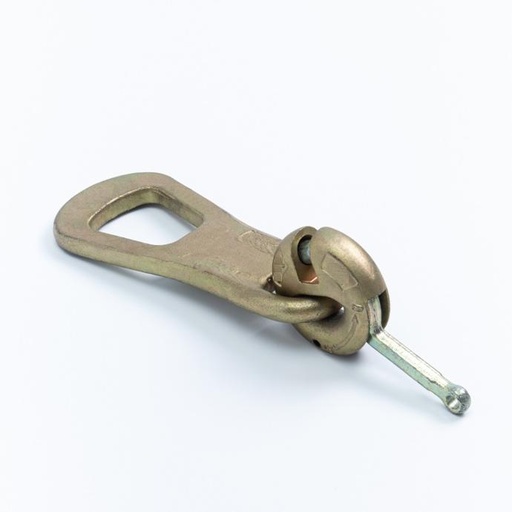

8-12T Ring Clutch
Item#: RingCluch-10T
$ 220.76 220.76 USD
Weight (lbs) : 20.57
Load Class : 8-12T
H : 3-3/8”
W : 5-1/2”
Ultimate Capacity in Tension (lbs) : 120,000
L : 16-1/2”
T : 1”
4T-6T Ring Clutch
Item#: RingCluch-5T
$ 81.77 81.77 USD
Weight (lbs) : 8.04
Load Class : 4-6T
Ultimate Tensile Requirement KN : 245
H : 3”
W : 4-7/16”
Ultimate Capacity in Tension (lbs) : 60,000
L : 13-1/4”
T : 5/8”
2-3T Ring Clutch
Item#: RingCluch-2.5T
$ 46.72 46.72 USD
Weight (lbs) : 3.57
Load Class : 2-3T
Safe Working Load KN : 24.5
W : 3-3/4”
H : 2-1/2”
Ultimate Capacity in Tension (lbs) : 30,000
L : 10-5/16”
T : 1/2”
12.5T-22T Cable Ring Clutch
Item#: RL-RCWC-22T
$ 513.99 513.99 USD
Weight (lbs) : 60.63
W : 8-7/8”
Safe Working Load KN : 215
Ultimate Tensile Requirement KN : 1150
H : 62”
Load Class(kg) : 12.5-22T
Ultimate Capacity in Tension (lbs) : 220,000
8T-12T Cable Ring Clutch
Item#: RCWC-10T
$ 219.62 219.62 USD
Weight (lbs) : 22.11
Load Class : 8-12T
W : 6-3/8”
Safe Working Load KN : 98
Ultimate Tensile Requirement KN : 490
H : 33-1/2”
Ultimate Capacity in Tension (lbs) : 120,000
4T-6T Cable Ring Clutch
Item#: RCWC-5T
$ 131.60 131.6 USD
Weight (lbs) : 7.38
Load Class : 4-6T
W : 5-5/8”
Safe Working Load KN : 49
Ultimate Tensile Requirement KN : 245
H : 25-1/2”
Ultimate Capacity in Tension (lbs) : 60,000

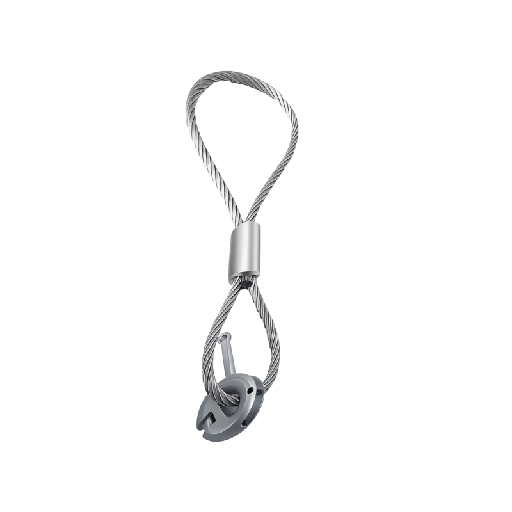

2T-3T Cable Ring Clutch
Item#: RCWC-2T
$ 78.72 78.72 USD
Weight (lbs) : 3.87
Load Class : 2-3T
W : 4-7/8”
Safe Working Load KN : 24.5
Ultimate Tensile Requirement KN : 122.5
H : 23-3/4”
Ultimate Capacity in Tension (lbs) : 30,000
1 Ton Split Foot Erection Anchor
Item#: MPA-MU-1.25-125
$ 1.09 1.09 USD
L - Length : 4-15/16”
Weight (lbs) : 0.34
W : 1-3/16”
2.66:1 SWL* Shear w/ Shear Bar (lbs) : 918
4:1 SWL Shear w/ Shear Bar (lbs) : 611
Size : 1T
Ring Clutch System : 1T
D : 7/16”
T - Thickness : 1/4”
S - Spread : 1-3/4”
4:1 SWL Tension w/ Tension Bar (lbs) : 2,000
Anchor Ultimate Mechanical Load in Tension (lbs) : 8,000
Min. Panel Thickness : 3”
4:1 SWL Tension w/o Tension Bar (lbs) : 1,160
N : 3/4”
Min. Corner Distance : 12”
8T Insulated Panel Anchor
Item#: MPA-PA-8
$ 8.81 8.81 USD
L - Length : 4-3/4”
Weight (lbs) : 5.64
W : 6”
Size : 8.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
A : 3-1/2”
B : 4-3/8”
4T Insulated Panel Anchor
Item#: MPA-PA-4
$ 4.99 4.99 USD
L - Length : 3-1/4”
Weight (lbs) : 2.98
W : 6”
Size : 4.0T
T - Thickness : 5/8”
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
A : 1-13/16”
B : 4-3/8”
8T x 6-1/4" Plate Anchor
Item#: МРА-МР-10-158
$ 8.81 8.81 USD
Ton : 8T
Weight (lbs) : 5.45
W : 2-1/2”
Ring Clutch Systerm : 8T-12T
Shear Load (bs) : 6,350
L : 5”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
H : 6-1/4”
Tension Load (lbs) : 6,350
T : 3/4”
4T x 4-3/8" Plate Anchors
Item#: МРА-МР-5-110
$ 4.07 4.07 USD
Ton : 4T
Weight (lbs) : 1.92
W : 1-1/2"
Ring Clutch Systerm : 4T-6T
L : 3-7/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32000
Shear Load (lbs) : 4,730
H : 4-3/8”
Tension Load (lbs) : 4,730
T : 5/8”
2T x 2-1/4" Plate Anchors
Item#: MPA-MP-2.5-55
$ 2.54 2.54 USD
Ton : 2T
Weight (lbs) : 0.74
W : 1-1/4”
Ring Clutch Systerm : 2T-3T
Shear Load (bs) : 950
L : 3-3/4"
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
H : 2-1/4"
TensionLoad (lbs) : 950
T : 3/8"
22T Two-Hole Anchor
Item#: MPA-M2-22-300
$ 22.80 22.8 USD
L - Length : 11-3/4”
Weight (lbs) : 10.36
T - Thickness : 1-3/16”
W : 3-1/8”
Size : 22.0T
Ring Clutch System : 12.5T-22T
Anchor Ultimate Mechanical Load in Tension (lbs) : 176,000
Min. Panel Thickness : 7”
Reinforced Tension Load (lbs) : 44,000
A : 1-13/16”
B : 1-3/8”
C : 2-7/16”
8T Two-Hole Anchor
Item#: MPA-M2-8-180
$ 5.82 5.82 USD
L - Length : 7”
Weight (lbs) : 3.04
T - Thickness : 3/4”
W : 2-1/2”
Size : 8.0T
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
Min. Panel Thickness : 5”
Reinforced Tension Load (lbs) : 16,000
A : 1-3/16”
B : 1”
C : 1-7/16”
