Coil Inserts And Accessories

Coil Inserts and Accessories is the companion catalogue to the OCS coil insert product line — matching coil bolts, coil rods, connectors, and small hardware for field assembly. Every accessory is dimensionally matched to OCS coil inserts so panel-to-panel connections engage cleanly. Sizes cover 1/2″, 5/8″, 3/4″, and 1″ coil thread standards, stocked across four U.S. hubs for 1–2 day shipping.

3/4" x 3-1/2" Flared Thin Slab Coil Insert
Item#: CI-FTSC-3480
$ 2.48 2.48 USD
L - Length : 5-1/4”
Weight (lbs) : 0.77
Load Class : ≥80.1KN
H : 3-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"
1/2" x 1-3/4" Flared Thin Slab Coil Insert
Item#: CI-FTSC-1236
$ 0.96 0.96 USD
L - Length : 4-11/16”
Weight (lbs) : 0.30
Load Class : ≥36.5KN
H : 1-3/4”
SPRING CIRCLES : 7
D - Wire Diameter : 0.256”
SPRING SIZE : 1/2"
3/4" x 2-5/16" Flared Thin Slab Coil Insert
Item#: CI-FTSC-3445
$ 2.15 2.15 USD
L - Length : 5-1/4”
Weight (lbs) : 0.62
Load Class : ≥45.4KN
H : 2-5/16”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"
1" x 2-5/16" Flared Thin Slab Coil Insert
Item#: CI-FTSC-1063
$ 2.57 2.57 USD
L - Length : 5-11/16”
Weight (lbs) : 0.69
Load Class : ≥63.2KN
H - Height : 2-5/16”
SPRING CIRCLES : 6
D - Wire Diameter : 0.327”
SPRING SIZE : 1"
1" x 4-1/2" Flared Thin Slab Coil Insert
Item#: CI-FTSC-10111
$ 3.32 3.3200000000000003 USD
L - Length : 5-11/16”
Weight (lbs) : 1.11
Load Class : ≥111.2KN
H : 4-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 1"

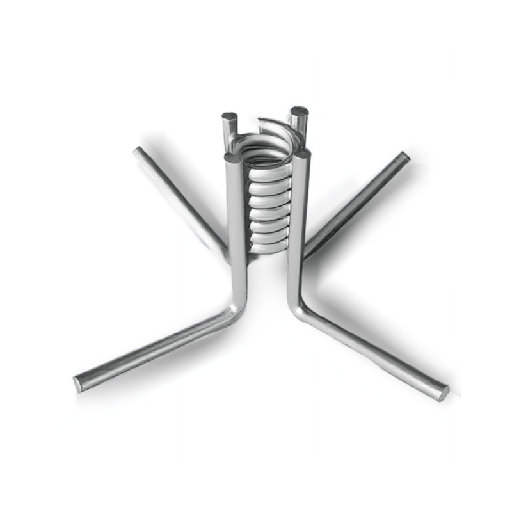

4" x 1" Thin Slab Coil Insert
Item#: CI-LCI-10111
$ 3.86 3.86 USD
Weight (lbs) : 1.20
Load Class : ≥111.2KN
L : 9-3/8"
H : 4"
RING DIA : 8.3
SPRING SIZE : 1"
SPRING CIRCLES : 7

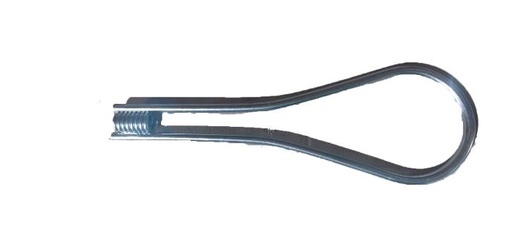

1/2" x 12" Flared Loop Coil Insert
Item#: CI-FLC-1264
$ 2.03 2.0300000000000002 USD
L - Length : 12”
Weight (lbs) : 0.75
Load Class : ≥64.1KN
H : 6”
SPRING CIRCLES : 8
RING DIA : 8.3
SPRING SIZE : 1/2"
3/4" x 12" Flared Loop Coil Insert
Item#: CI-FLC-3480
$ 3.11 3.11 USD
L - Length : 12”
Weight (lbs) : 1.04
Load Class : ≥80.1KN
H : 6”
SPRING CIRCLES : 7
RING DIA : 9.5
SPRING SIZE : 3/4"
6" x 3/4" Straight Loop Coil Insert
Item#: CI-SLC-3480
$ 1.43 1.43 USD
Weight (lbs) : 0.61
W : 1-7/8”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 18,000
Bolt Dimeter : 3/4"
4" x 1/2" Straight Loop Coil Insert
Item#: CI-SLC-1240
$ 0.68 0.68 USD
Weight (lbs) : 0.21
W : 1-5/16”
Total Length : 4”
Insert Ultimate Mechanical Load Tension (lbs) : 9,000
Bolt Dimeter : 1/2"

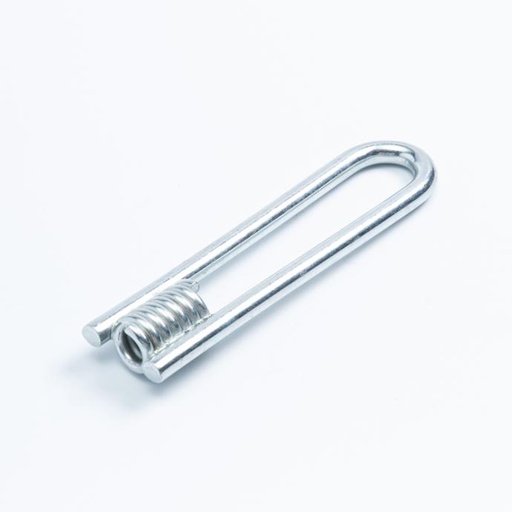

6" x 1/2" Straight Loop Coil Insert
Item#: CI-SLC-1264
$ 1.01 1.01 USD
Weight (lbs) : 0.4
W : 1-7/16”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 14,400
Bolt Dimeter : 1/2"

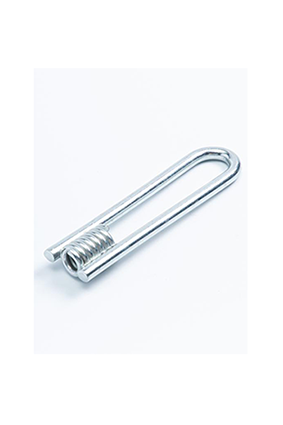

4" x 3/4" Straight Loop Coil Insert
Item#: CI-SLC-3464
$ 1.13 1.1300000000000001 USD
Weight (lbs) : 0.35
W : 1-11/16”
Total Length : 4”
Insert Ultimate Mechanical Load Tension (lbs) : 15,000
Bolt Dimeter : 3/4"
3" x 3/4" Thin Slab Coil Insert
Item#: CI-LCI-3480
$ 2.69 2.69 USD
Weight (lbs) : 0.74
Load Class : ≥80.1KN
L : 7-1/8"
H : 3"
SPRING CIRCLES : 7
SPRING SIZE : 3/4"
RING DIA : 8.3
1" Single Swivel Lift Plate
RL-SSLP-1
$ 75.45 75.45 USD
L - Length : 5”
Weight (lbs) : 5.53
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 4.5T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 1”

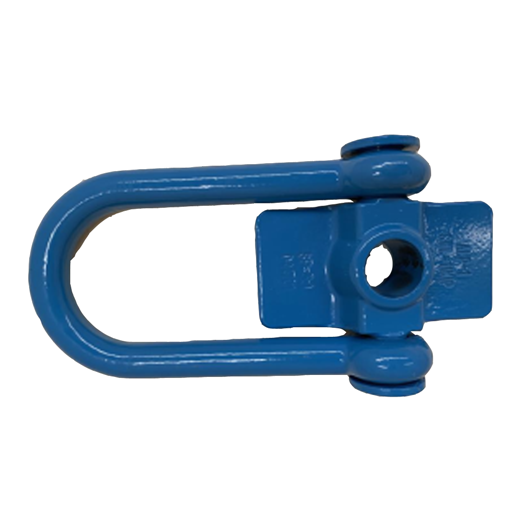

3/4" Single Swivel Lift Plate
RL-SSLP-34
$ 74.75 74.75 USD
L - Length : 5”
Weight (lbs) : 5.68
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 3T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 3/4”

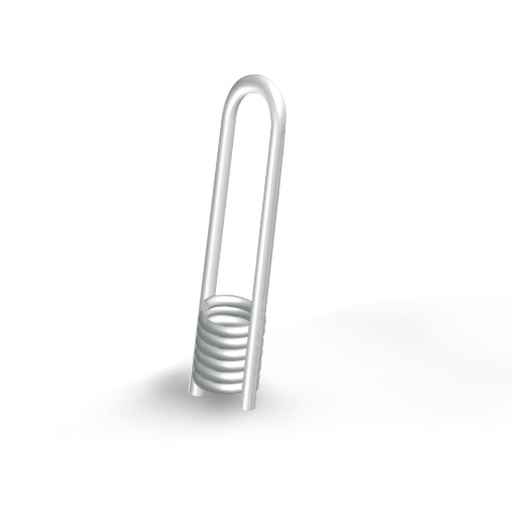

6" x 1" Straight Loop Coil Insert
Item#: CI-SLC-1080
$ 2.34 2.34 USD
Weight (lbs) : 0.87
W : 2-3/16”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 18,000
Bolt Dimeter : 1"
