Single Swivel Lift Plate

Single Swivel Lift Plates (RL-SSLP family) thread onto a coil insert to convert it into a swivel lifting point — the swivel head absorbs angle changes during the lift and eliminates the side-load that would otherwise be transmitted into the insert threads. OCS carries single swivel lift plates in 3/4″ and 1″ sizes, forged and proof-load tested to meet the 5:1 safety factor required by OSHA 29 CFR 1926.704(d) for lifting hardware.

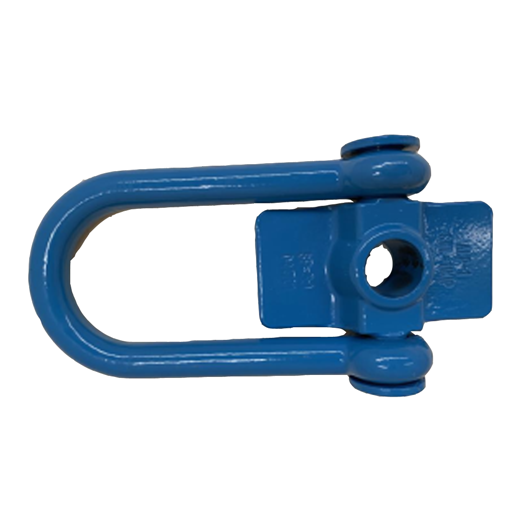

1" Single Swivel Lift Plate
RL-SSLP-1
$ 75.45 75.45 USD
L - Length : 5”
Weight (lbs) : 5.53
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 4.5T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 1”
3/4" Single Swivel Lift Plate
RL-SSLP-34
$ 74.75 74.75 USD
L - Length : 5”
Weight (lbs) : 5.68
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 3T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 3/4”
