Inserts and Connections

Inserts and Connections covers the OCS catalogue of precast concrete connection hardware — coil inserts, ferrule inserts, and grout sleeves for architectural and structural precast systems. Every product family in this category is manufactured to PCI and ACI standards and stocked at four U.S. distribution centers for immediate pull. Browse by connection type below, or send your panel drawings for a matched connection detail from our engineering team.

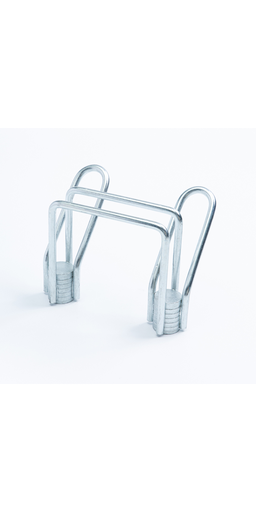

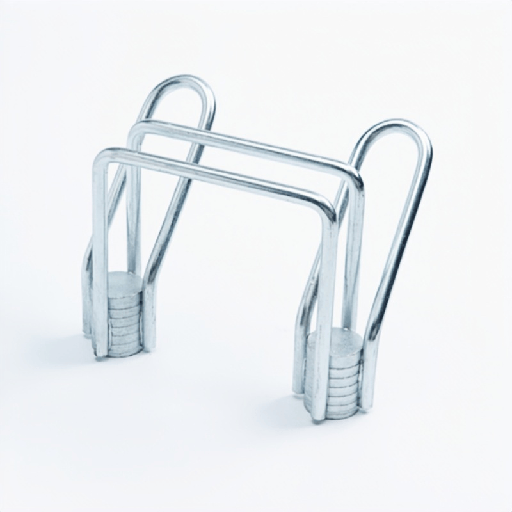

1" x 6" x 6" Wing Wall Ferrule Insert
Item#: CI-WWFI-10210
$ 11.44 11.44 USD
Weight (lbs) : 2.87
Size : 1"-8-UNC
Wire Diameter : 0.375”
Hight : 6”
Bolt Diameter : 1”
Insert spacing : 6”
1/2" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1240
$ 1.17 1.17 USD
L - Length : 4-1/8”
Weight (lbs) : 0.22
Load Class : ≥40.1KN
Size : 1/2"-13-UNC
Insert Ultimate Mechanical Capacity (lbs) : 9,000
RING DIA : 6.5
D - Wire Diameter : 0.256”
Threads per Inch (UNC) : 13
BD - Bolt Diameter : 1/2”

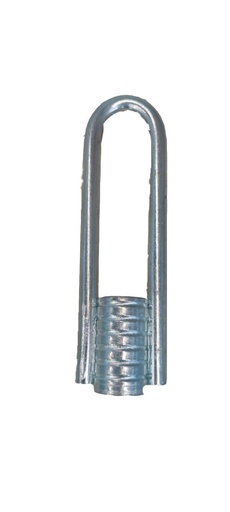

1" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1080
$ 3.93 3.93 USD
L - Length : 6-1/8”
Weight (lbs) : 0.83
Load Class : ≥80.1KN
Size : 1"-8-UNC
Insert Ultimate Mechanical Capacity (lbs) : 18,000
RING DIA : 9.5
D - Wire Diameter : 0.375”
Threads per Inch (UNC) : 8
BD - Bolt Diameter : 1”
1/2" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1264
$ 1.86 1.86 USD
L - Length : 6-1/8”
Weight (lbs) : 0.4
Load Class : ≥64.1KN
Size : 1/2"-13-UNC
Insert Ultimate Mechanical Capacity (lbs) : 14,400
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 13
BD - Bolt Diameter : 1/2”
5/8" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-5840
$ 1.60 1.6 USD
L - Length : 4-1/8”
Weight (lbs) : 0.31
Load Class : ≥40.1KN
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Capacity (lbs) : 9,000
RING DIA : 6.5
D - Wire Diameter : 0.256”
Threads per Inch (UNC) : 11
BD - Bolt Diameter : 5/8”
3/4" x 3-5/8" Flared Wing Ferrule Insert
Item#: CI-TSF-3480EX
$ 3.40 3.4 USD
L - Length : 5-1/8”
Weight (lbs) : 0.7
Size : 3/4"-10-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 3-5/8”
BD - Bolt Diameter : 3/4”

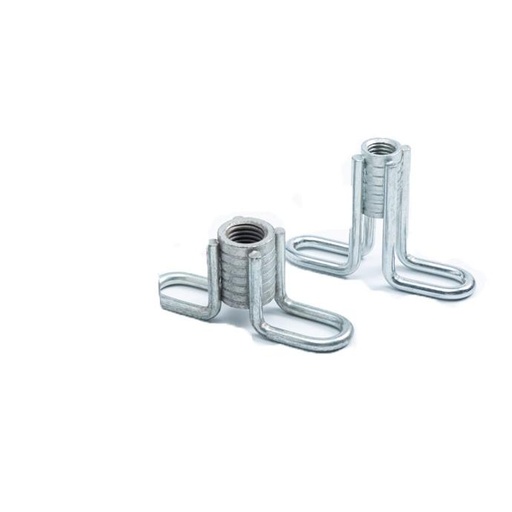

1" x 2-7/16" Flared Wing Ferrule Insert
Item#: CI-TSF-1080
$ 3.77 3.77 USD
L - Length : 5-9/16”
Weight (lbs) : 0.86
Size : 1"-8-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 2-7/16”
1/2" x 1-3/4" Flared Wing Ferrule Insert
Item#: CI-TSF-1240
$ 1.71 1.71 USD
L - Length : 4-1/2”
Weight (lbs) : 0.31
Size : 1/2"-13-UNC
Wire Diameter : 0.256”
Insert Ultimate Mechanical Capacity(lbs) : ≥9,000
Hight : 1-7/8”
3/4" x 2-7/16" Flared Wing Ferrule Insert
Item#: CI-TSF-3480
$ 3.18 3.18 USD
L - Length : 5-1/8”
Weight (lbs) : 0.63
Size : 3/4"-10-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 2-7/16”
BD - Bolt Diameter : 3/4”
1/4" Thin Slab Ferrule Insert
Item#: CI-TSF-146
$ 1.12 1.12 USD
L - Length : 4”
Weight (lbs) : 0.22
Size : 1/4"-20-UNC
D-Wire Diameter : 0.256”
Hight : 1-1/4”
Tension(lbs) : ≥450

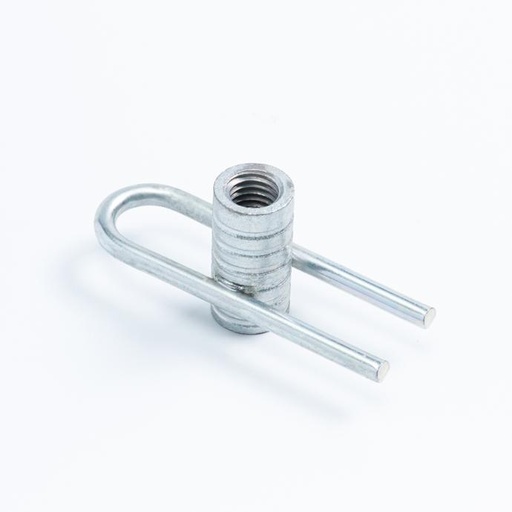

1/2" Thin Slab Ferrule Insert
Item#: CI-TSF-1212
$ 1.36 1.36 USD
L - Length : 4”
Weight (lbs) : 0.22
Size : 1/2"-13-UNC
D-Wire Diameter : 0.256”
Hight : 1-3/8”
Tension(lbs) : ≥900
3/4" Flared Loop Ferrule Insert
Item#: CI-FLI3466
$ 1.46 1.46 USD
L - Length : 3-1/2”
Weight (lbs) : 0.4
W : 2-1/4”
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥15000
RING DIA : 13/16”
1/2" Flared Loop Ferrule Insert
Item#: CI-FLI1240
$ 0.91 0.91 USD
L - Length : 2-3/4”
Weight (lbs) : 0.19
Size : 1/2"-13-UNC
Width : 1-5/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 9/16”

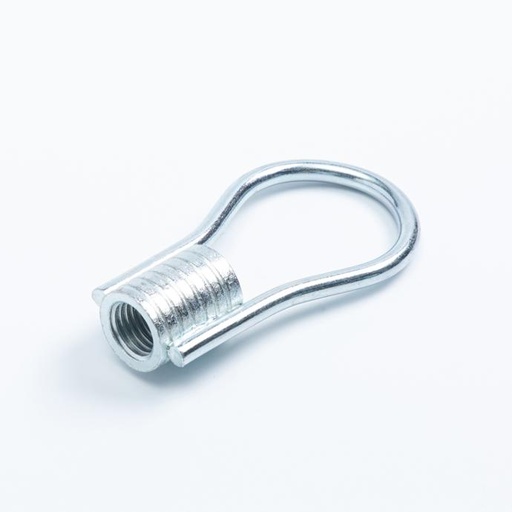

3/8" Flared Loop Ferrule Insert
Item#: CI-FLI3840
$ 0.96 0.96 USD
L - Length : 2-3/4”
Weight (lbs) : 0.21
Size : 3/8"-16-UNC
Width : 1-1/2”
Bolt Diameter (UNC Thread) : 3/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 61/2”
Threads per Inch (UNC) : 16
5/8" Flared Loop Ferrule Insert
Item#: CI-FLI5840
$ 1.27 1.27 USD
L - Length : 3-1/2”
Weight (lbs) : 0.30
W : 2-1/8”
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 13/16”
3/4" x 3-1/2" Flared Thin Slab Coil Insert
Item#: CI-FTSC-3480
$ 2.48 2.48 USD
L - Length : 5-1/4”
Weight (lbs) : 0.77
Load Class : ≥80.1KN
H : 3-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"

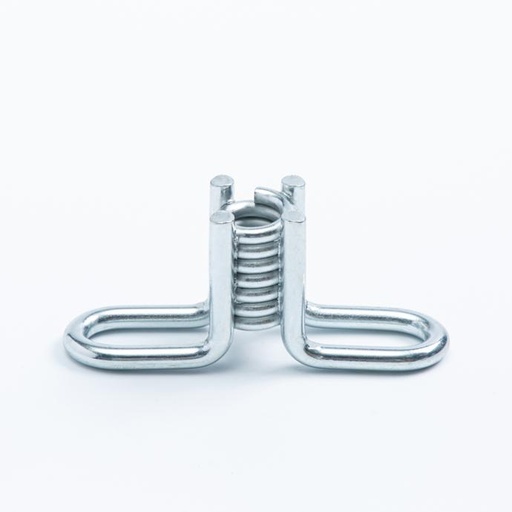

1/2" x 1-3/4" Flared Thin Slab Coil Insert
Item#: CI-FTSC-1236
$ 0.96 0.96 USD
L - Length : 4-11/16”
Weight (lbs) : 0.30
Load Class : ≥36.5KN
H : 1-3/4”
SPRING CIRCLES : 7
D - Wire Diameter : 0.256”
SPRING SIZE : 1/2"
3/4" x 2-5/16" Flared Thin Slab Coil Insert
Item#: CI-FTSC-3445
$ 2.15 2.15 USD
L - Length : 5-1/4”
Weight (lbs) : 0.62
Load Class : ≥45.4KN
H : 2-5/16”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"
1" x 2-5/16" Flared Thin Slab Coil Insert
Item#: CI-FTSC-1063
$ 2.57 2.57 USD
L - Length : 5-11/16”
Weight (lbs) : 0.69
Load Class : ≥63.2KN
H - Height : 2-5/16”
SPRING CIRCLES : 6
D - Wire Diameter : 0.327”
SPRING SIZE : 1"
1" x 4-1/2" Flared Thin Slab Coil Insert
Item#: CI-FTSC-10111
$ 3.32 3.3200000000000003 USD
L - Length : 5-11/16”
Weight (lbs) : 1.11
Load Class : ≥111.2KN
H : 4-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 1"
