Ferrule Inserts and Accessories

Ferrule inserts and accessories is the companion catalogue to our main ferrule insert line — coil bolts, coil rods, ferrule shot bolts, threaded setting hardware, and the small parts precast crews need to complete a connection in the field. Every accessory is dimensionally matched to OCS ferrule inserts, so field assemblies engage cleanly without on-site adjustment. Available in coil sizes from 3/8″ through 1-1/2″ and stocked at all four U.S. distribution hubs for immediate pull.

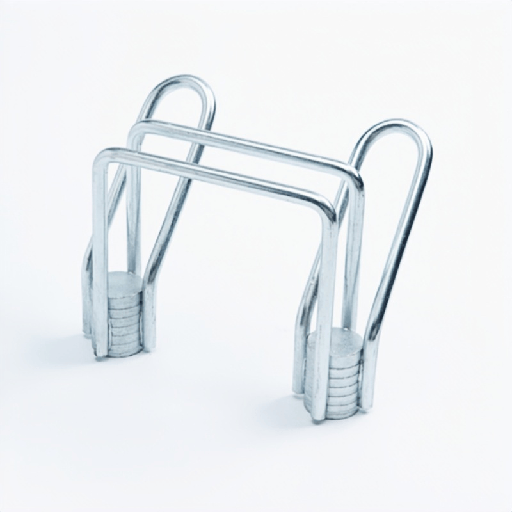

1" x 6" x 6" Wing Wall Ferrule Insert
Item#: CI-WWFI-10210
$ 11.44 11.44 USD
Weight (lbs) : 2.87
Size : 1"-8-UNC
Wire Diameter : 0.375”
Hight : 6”
Bolt Diameter : 1”
Insert spacing : 6”

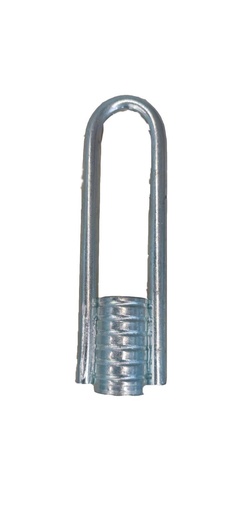

1/2" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1240
$ 1.17 1.17 USD
L - Length : 4-1/8”
Weight (lbs) : 0.22
Load Class : ≥40.1KN
Size : 1/2"-13-UNC
Insert Ultimate Mechanical Capacity (lbs) : 9,000
RING DIA : 6.5
D - Wire Diameter : 0.256”
Threads per Inch (UNC) : 13
BD - Bolt Diameter : 1/2”
1" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1080
$ 3.93 3.93 USD
L - Length : 6-1/8”
Weight (lbs) : 0.83
Load Class : ≥80.1KN
Size : 1"-8-UNC
Insert Ultimate Mechanical Capacity (lbs) : 18,000
RING DIA : 9.5
D - Wire Diameter : 0.375”
Threads per Inch (UNC) : 8
BD - Bolt Diameter : 1”
1/2" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-1264
$ 1.86 1.86 USD
L - Length : 6-1/8”
Weight (lbs) : 0.4
Load Class : ≥64.1KN
Size : 1/2"-13-UNC
Insert Ultimate Mechanical Capacity (lbs) : 14,400
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 13
BD - Bolt Diameter : 1/2”
5/8" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-5840
$ 1.60 1.6 USD
L - Length : 4-1/8”
Weight (lbs) : 0.31
Load Class : ≥40.1KN
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Capacity (lbs) : 9,000
RING DIA : 6.5
D - Wire Diameter : 0.256”
Threads per Inch (UNC) : 11
BD - Bolt Diameter : 5/8”
3/4" x 3-5/8" Flared Wing Ferrule Insert
Item#: CI-TSF-3480EX
$ 3.40 3.4 USD
L - Length : 5-1/8”
Weight (lbs) : 0.7
Size : 3/4"-10-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 3-5/8”
BD - Bolt Diameter : 3/4”
1" x 2-7/16" Flared Wing Ferrule Insert
Item#: CI-TSF-1080
$ 3.77 3.77 USD
L - Length : 5-9/16”
Weight (lbs) : 0.86
Size : 1"-8-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 2-7/16”

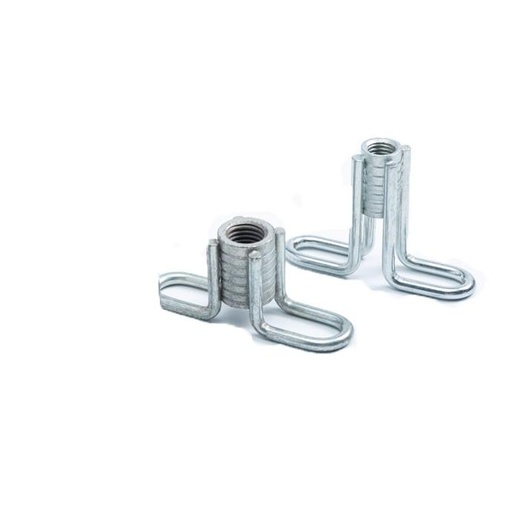

1/2" x 1-3/4" Flared Wing Ferrule Insert
Item#: CI-TSF-1240
$ 1.71 1.71 USD
L - Length : 4-1/2”
Weight (lbs) : 0.31
Size : 1/2"-13-UNC
Wire Diameter : 0.256”
Insert Ultimate Mechanical Capacity(lbs) : ≥9,000
Hight : 1-7/8”
3/4" x 2-7/16" Flared Wing Ferrule Insert
Item#: CI-TSF-3480
$ 3.18 3.18 USD
L - Length : 5-1/8”
Weight (lbs) : 0.63
Size : 3/4"-10-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 2-7/16”
BD - Bolt Diameter : 3/4”
1/4" Thin Slab Ferrule Insert
Item#: CI-TSF-146
$ 1.12 1.12 USD
L - Length : 4”
Weight (lbs) : 0.22
Size : 1/4"-20-UNC
D-Wire Diameter : 0.256”
Hight : 1-1/4”
Tension(lbs) : ≥450
1/2" Thin Slab Ferrule Insert
Item#: CI-TSF-1212
$ 1.36 1.36 USD
L - Length : 4”
Weight (lbs) : 0.22
Size : 1/2"-13-UNC
D-Wire Diameter : 0.256”
Hight : 1-3/8”
Tension(lbs) : ≥900
3/4" Flared Loop Ferrule Insert
Item#: CI-FLI3466
$ 1.46 1.46 USD
L - Length : 3-1/2”
Weight (lbs) : 0.4
W : 2-1/4”
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥15000
RING DIA : 13/16”
1/2" Flared Loop Ferrule Insert
Item#: CI-FLI1240
$ 0.91 0.91 USD
L - Length : 2-3/4”
Weight (lbs) : 0.19
Size : 1/2"-13-UNC
Width : 1-5/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 9/16”
3/8" Flared Loop Ferrule Insert
Item#: CI-FLI3840
$ 0.96 0.96 USD
L - Length : 2-3/4”
Weight (lbs) : 0.21
Size : 3/8"-16-UNC
Width : 1-1/2”
Bolt Diameter (UNC Thread) : 3/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 61/2”
Threads per Inch (UNC) : 16
5/8" Flared Loop Ferrule Insert
Item#: CI-FLI5840
$ 1.27 1.27 USD
L - Length : 3-1/2”
Weight (lbs) : 0.30
W : 2-1/8”
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 13/16”
1" x 5-1/2" Exp Coil Insert
Item#: CI-ECI-10111
$ 4.38 4.38 USD
L - Length : 5-1/2”
Weight (lbs) : 1.48
W : 2-3/4”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25000
Bolt Diameter : 1”
# of Struts : 2

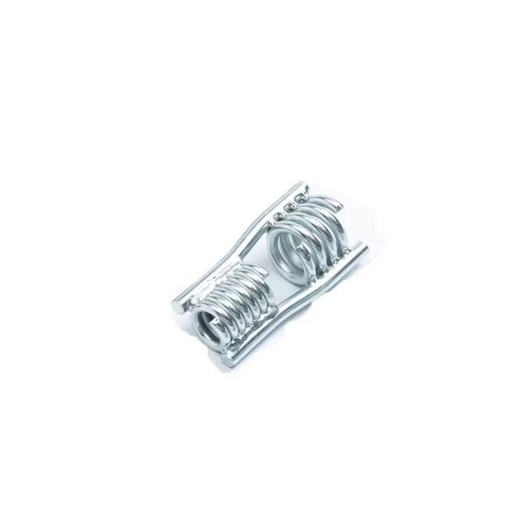

3/4" x 4-1/2" Exp Coil Insert
Item#: CI-ECI-3480
$ 2.98 2.98 USD
L - Length : 4-1/2”
Weight (lbs) : 0.72
Load Class : ≥80.1KN
W : 2-1/8”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Bolt Diameter : 3/4"
# of Struts : 2

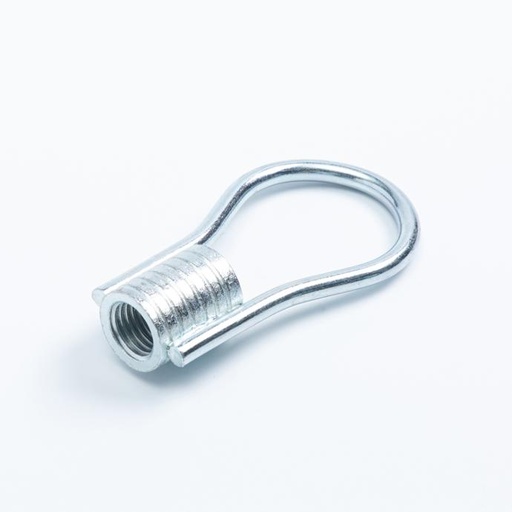

7/8" Flared Loop Ferrule Insert
Item#: CI-FLI7880
$ 3.30 3.3000000000000003 USD
L - Length : 6”
Weight (lbs) : 0.81
W : 3-3/8”
Size : 7/8"-9-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥18000
RING DIA : 2”
1" Flared Loop Ferrule Insert
Item#: CI-FLI1080
$ 3.41 3.41 USD
L - Length : 6”
Weight (lbs) : 0.86
W : 3-3/8”
Size : 1"-8-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥18000
RING DIA : 2-1/8”

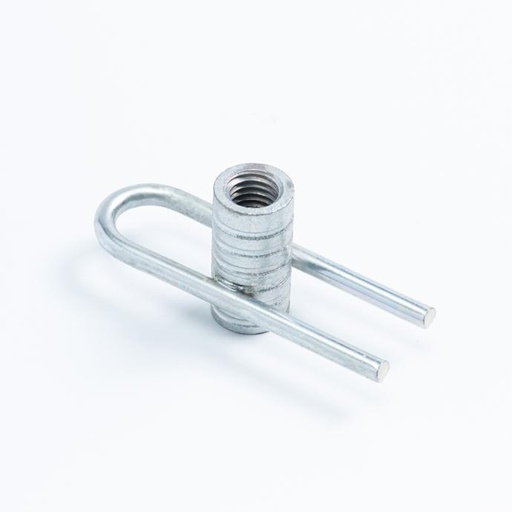

5/8" Thin Slab Ferrule Insert
Item#: CI-TSF-5813
$ 1.49 1.49 USD
L - Length : 4”
Weight (lbs) : 0.30
Size : 5/8"-11-UNC
D-Wire Diameter : 0.256”
Hight : 1-5/8”
Tension(lbs) : ≥1000
