Ferrule Inserts and Accessories

Ferrule inserts and accessories is the companion catalogue to our main ferrule insert line — coil bolts, coil rods, ferrule shot bolts, threaded setting hardware, and the small parts precast crews need to complete a connection in the field. Every accessory is dimensionally matched to OCS ferrule inserts, so field assemblies engage cleanly without on-site adjustment. Available in coil sizes from 3/8″ through 1-1/2″ and stocked at all four U.S. distribution hubs for immediate pull.

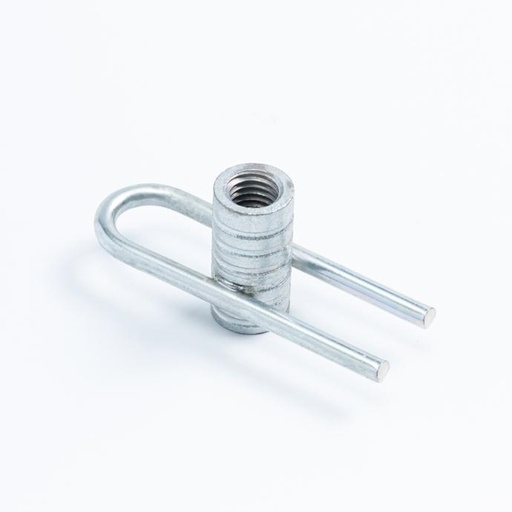

3/4" Thin Slab Ferrule Insert
Item#: CI-TSF-3421
$ 1.77 1.77 USD
L - Length : 4”
Weight (lbs) : 0.42
Size : 3/4"-10-UNC
D-Wire Diameter : 0.256”
Hight : 1-5/8”
Tension(lbs) : ≥1600
5/8" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-5866
$ 2.39 2.39 USD
L - Length : 6-1/8”
Weight (lbs) : 0.52
Load Class : ≥66.8KN
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Capacity (lbs) : 15,000
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 11
BD - Bolt Diameter : 5/8”

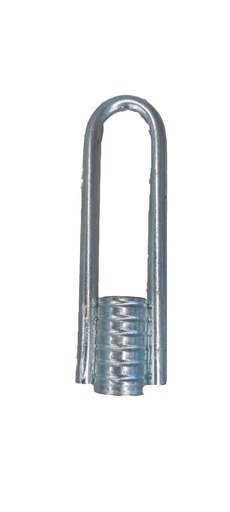

3/4" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-3466
$ 1.48 1.48 USD
L - Length : 4-1/8”
Weight (lbs) : 0.42
Load Class : ≥66.8KN
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Capacity (lbs) : 15,000
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 10
BD - Bolt Diameter : 3/4”
3/4" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-3480
$ 2.60 2.6 USD
L - Length : 6-1/8”
Weight (lbs) : 0.61
Load Class : ≥80.1KN
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Capacity (lbs) : 18,000
RING DIA : 9.5
D - Wire Diameter : 0.375”
Threads per Inch (UNC) : 10
BD - Bolt Diameter : 3/4”

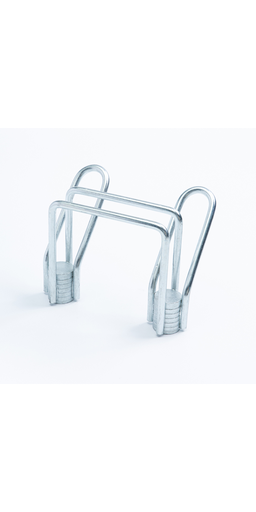

1" x 6" x 8" Wing Wall Ferrule Insert
Item#: CI-WWFI-10210EX
$ 13.44 13.44 USD
Weight (lbs) : 3.46
Size : 1"-8-UNC
Wire Diameter : 0.375”
Hight : 8”
Bolt Diameter : 1”
Insert spacing : 6”

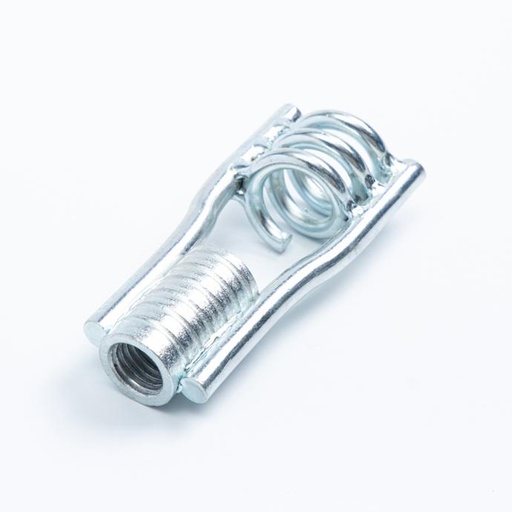

3/4" x 4-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-3480
$ 2.98 2.98 USD
L - Length : 4-1/2"
Weight (lbs) : 0.72
Size : 3/4"-10-UNC
Width : 2-1/8”
Wire Diameter : 0.375”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Threads per Inch (UNC) : 10
Number of Struts : 2
BD - Bolt Diameter : 3/4”
1" x 5-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10111
$ 4.69 4.69 USD
L - Length : 5-1/2"
Weight (lbs) : 1.13
Size : 1"-8-UNC
Width : 2-3/4”
Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25,000
Threads per Inch (UNC) : 8
Number of Struts : 2
BD - Bolt Diameter : 1”
1-1/4" x 7-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10177
$ 10.53 10.53 USD
L - Length : 7-1/2"
Weight (lbs) : 2.67
W - Width : 3”
Size : 1-1/4"-7-UNC
Insert Ultimate Mechanical Capacity (lbs) : 40000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 7
BD - Bolt Diameter : 1-1/4”

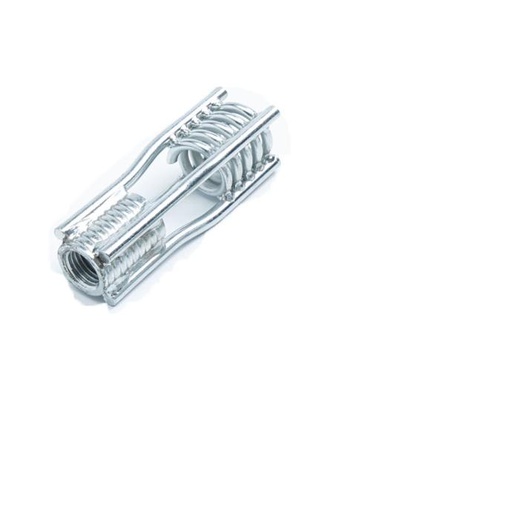

1-1/2" x 9-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10266
$ 16.73 16.73 USD
L - Length : 9-1/2"
Weight (lbs) : 5.69
W - Width : 3-3/8”
Size : 1-1/2"-6-UNC
Insert Ultimate Mechanical Capacity (lbs) : 60000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 6
BD - Bolt Diameter : 1-1/2”
FERRULE LOOP INSERT 1/4" 304 SS
$ 3.49 3.49 USD
Insert Length : 2-3/4"
Thread Depth : 1-1/4"
SLW(LBS) : 650
Suggested Edge Distance : 5"
Thread : 1/4"-20NC
Wire Diameter : 0.243"
FERRULE LOOP INSERT 3/8" 304 SS
$ 3.79 3.79 USD
Insert Length : 2-3/4"
Thread Depth : 1-1/4"
SLW(LBS) : 2000
Suggested Edge Distance : 5"
Thread : 3/8"-16NC
Wire Diameter : 0.243"
FERRULE LOOP INSERT 1/2" 304 SS
$ 4.49 4.49 USD
Insert Length : 2-3/4"
Thread Depth : 1-3/8"
SLW(LBS) : 2000
Suggested Edge Distance : 5"
Thread : 1/2"-13NC
Wire Diameter : 0.262"
FERRULE LOOP INSERT 5/8" 304 SS
$ 6.99 6.99 USD
Insert Length : 3-1/4"
Thread Depth : 1-5/8"
SLW(LBS) : 2400
Suggested Edge Distance : 5"
Thread : 5/8"-11NC
Wire Diameter : 0.262"
FERRULE LOOP INSERT 3/4" 304 SS
$ 5.99 5.99 USD
Insert Length : 3-1/2"
Thread Depth : 1-5/8"
SLW(LBS) : 2400
Suggested Edge Distance : 5"
Thread : 3/4"-10NC
Wire Diameter : 0.375”
