Inserts and Connections

Inserts and Connections covers the OCS catalogue of precast concrete connection hardware — coil inserts, ferrule inserts, and grout sleeves for architectural and structural precast systems. Every product family in this category is manufactured to PCI and ACI standards and stocked at four U.S. distribution centers for immediate pull. Browse by connection type below, or send your panel drawings for a matched connection detail from our engineering team.

1" x 5-1/2" Exp Coil Insert
Item#: CI-ECI-10111
$ 4.38 4.38 USD
L - Length : 5-1/2”
Weight (lbs) : 1.48
W : 2-3/4”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25000
Bolt Diameter : 1”
# of Struts : 2
3/4" x 4-1/2" Exp Coil Insert
Item#: CI-ECI-3480
$ 2.98 2.98 USD
L - Length : 4-1/2”
Weight (lbs) : 0.72
Load Class : ≥80.1KN
W : 2-1/8”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Bolt Diameter : 3/4"
# of Struts : 2
4" x 1" Thin Slab Coil Insert
Item#: CI-LCI-10111
$ 3.86 3.86 USD
Weight (lbs) : 1.20
Load Class : ≥111.2KN
L : 9-3/8"
H : 4"
RING DIA : 8.3
SPRING SIZE : 1"
SPRING CIRCLES : 7
1/2" x 12" Flared Loop Coil Insert
Item#: CI-FLC-1264
$ 2.03 2.0300000000000002 USD
L - Length : 12”
Weight (lbs) : 0.75
Load Class : ≥64.1KN
H : 6”
SPRING CIRCLES : 8
RING DIA : 8.3
SPRING SIZE : 1/2"
3/4" x 12" Flared Loop Coil Insert
Item#: CI-FLC-3480
$ 3.11 3.11 USD
L - Length : 12”
Weight (lbs) : 1.04
Load Class : ≥80.1KN
H : 6”
SPRING CIRCLES : 7
RING DIA : 9.5
SPRING SIZE : 3/4"
6" x 3/4" Straight Loop Coil Insert
Item#: CI-SLC-3480
$ 1.43 1.43 USD
Weight (lbs) : 0.61
W : 1-7/8”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 18,000
Bolt Dimeter : 3/4"
4" x 1/2" Straight Loop Coil Insert
Item#: CI-SLC-1240
$ 0.68 0.68 USD
Weight (lbs) : 0.21
W : 1-5/16”
Total Length : 4”
Insert Ultimate Mechanical Load Tension (lbs) : 9,000
Bolt Dimeter : 1/2"
6" x 1/2" Straight Loop Coil Insert
Item#: CI-SLC-1264
$ 1.01 1.01 USD
Weight (lbs) : 0.4
W : 1-7/16”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 14,400
Bolt Dimeter : 1/2"
4" x 3/4" Straight Loop Coil Insert
Item#: CI-SLC-3464
$ 1.13 1.1300000000000001 USD
Weight (lbs) : 0.35
W : 1-11/16”
Total Length : 4”
Insert Ultimate Mechanical Load Tension (lbs) : 15,000
Bolt Dimeter : 3/4"
3" x 3/4" Thin Slab Coil Insert
Item#: CI-LCI-3480
$ 2.69 2.69 USD
Weight (lbs) : 0.74
Load Class : ≥80.1KN
L : 7-1/8"
H : 3"
SPRING CIRCLES : 7
SPRING SIZE : 3/4"
RING DIA : 8.3
7/8" Flared Loop Ferrule Insert
Item#: CI-FLI7880
$ 3.30 3.3000000000000003 USD
L - Length : 6”
Weight (lbs) : 0.81
W : 3-3/8”
Size : 7/8"-9-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥18000
RING DIA : 2”
1" Flared Loop Ferrule Insert
Item#: CI-FLI1080
$ 3.41 3.41 USD
L - Length : 6”
Weight (lbs) : 0.86
W : 3-3/8”
Size : 1"-8-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥18000
RING DIA : 2-1/8”
5/8" Thin Slab Ferrule Insert
Item#: CI-TSF-5813
$ 1.49 1.49 USD
L - Length : 4”
Weight (lbs) : 0.30
Size : 5/8"-11-UNC
D-Wire Diameter : 0.256”
Hight : 1-5/8”
Tension(lbs) : ≥1000
3/4" Thin Slab Ferrule Insert
Item#: CI-TSF-3421
$ 1.77 1.77 USD
L - Length : 4”
Weight (lbs) : 0.42
Size : 3/4"-10-UNC
D-Wire Diameter : 0.256”
Hight : 1-5/8”
Tension(lbs) : ≥1600
5/8" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-5866
$ 2.39 2.39 USD
L - Length : 6-1/8”
Weight (lbs) : 0.52
Load Class : ≥66.8KN
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Capacity (lbs) : 15,000
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 11
BD - Bolt Diameter : 5/8”
3/4" x 4-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-3466
$ 1.48 1.48 USD
L - Length : 4-1/8”
Weight (lbs) : 0.42
Load Class : ≥66.8KN
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Capacity (lbs) : 15,000
RING DIA : 8.3
D - Wire Diameter : 0.327”
Threads per Inch (UNC) : 10
BD - Bolt Diameter : 3/4”

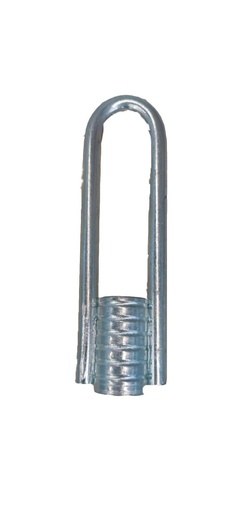

3/4" x 6-1/8" Straight Loop Ferrule Insert
Item#: CI-SLF-3480
$ 2.60 2.6 USD
L - Length : 6-1/8”
Weight (lbs) : 0.61
Load Class : ≥80.1KN
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Capacity (lbs) : 18,000
RING DIA : 9.5
D - Wire Diameter : 0.375”
Threads per Inch (UNC) : 10
BD - Bolt Diameter : 3/4”

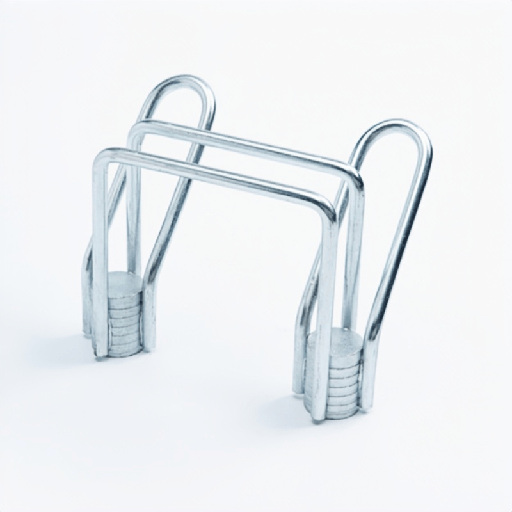

1" x 6" x 8" Wing Wall Ferrule Insert
Item#: CI-WWFI-10210EX
$ 13.44 13.44 USD
Weight (lbs) : 3.46
Size : 1"-8-UNC
Wire Diameter : 0.375”
Hight : 8”
Bolt Diameter : 1”
Insert spacing : 6”
1" Single Swivel Lift Plate
RL-SSLP-1
$ 75.45 75.45 USD
L - Length : 5”
Weight (lbs) : 5.53
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 4.5T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 1”
3/4" Single Swivel Lift Plate
RL-SSLP-34
$ 74.75 74.75 USD
L - Length : 5”
Weight (lbs) : 5.68
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 3T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 3/4”
