Inserts and Connections

Inserts and Connections covers the OCS catalogue of precast concrete connection hardware — coil inserts, ferrule inserts, and grout sleeves for architectural and structural precast systems. Every product family in this category is manufactured to PCI and ACI standards and stocked at four U.S. distribution centers for immediate pull. Browse by connection type below, or send your panel drawings for a matched connection detail from our engineering team.

Grouting Sleeve
Item#: GS-12
$ 5.78 5.78 USD
L(mm) : 200
D1(mm) : 26
D2(mm) : 46/58
Grouting Sleeve
Item#: GS-16
$ 6.69 6.69 USD
L(mm) : 240
D1(mm) : 30
D2(mm) : 50
Grouting Sleeve
Item#: GS-20
$ 12.41 12.41 USD
L(mm) : 290
D1(mm) : 35
D2(mm) : 60
Grouting Sleeve
Item#: GS-25
$ 19.15 19.150000000000002 USD
L(mm) : 360
D1(mm) : 43
D2(mm) : 70
Grouting Sleeve
Item#: GS-32
$ 23.55 23.55 USD
L(mm) : 445
D1(mm) : 55
D2(mm) : 75

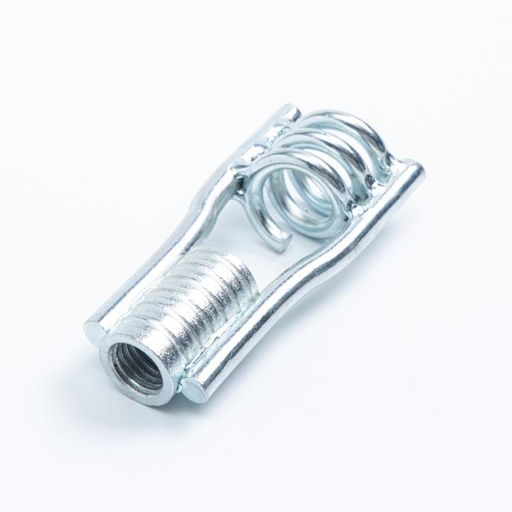

3/4" x 4-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-3480
$ 2.98 2.98 USD
L - Length : 4-1/2"
Weight (lbs) : 0.72
Size : 3/4"-10-UNC
Width : 2-1/8”
Wire Diameter : 0.375”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Threads per Inch (UNC) : 10
Number of Struts : 2
BD - Bolt Diameter : 3/4”
1" x 5-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10111
$ 4.69 4.69 USD
L - Length : 5-1/2"
Weight (lbs) : 1.13
Size : 1"-8-UNC
Width : 2-3/4”
Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25,000
Threads per Inch (UNC) : 8
Number of Struts : 2
BD - Bolt Diameter : 1”

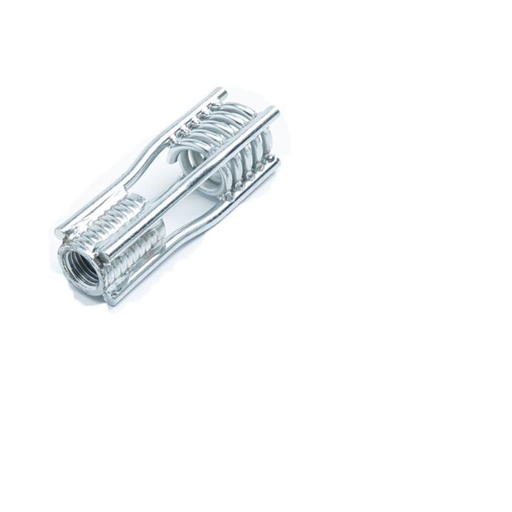

1-1/4" x 7-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10177
$ 10.53 10.53 USD
L - Length : 7-1/2"
Weight (lbs) : 2.67
W - Width : 3”
Size : 1-1/4"-7-UNC
Insert Ultimate Mechanical Capacity (lbs) : 40000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 7
BD - Bolt Diameter : 1-1/4”
1-1/2" x 9-1/2" Exp. Coil Ferrule Insert
Item#: CI-ECF-10266
$ 16.73 16.73 USD
L - Length : 9-1/2"
Weight (lbs) : 5.69
W - Width : 3-3/8”
Size : 1-1/2"-6-UNC
Insert Ultimate Mechanical Capacity (lbs) : 60000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 6
BD - Bolt Diameter : 1-1/2”
6" x 1" Straight Loop Coil Insert
Item#: CI-SLC-1080
$ 2.34 2.34 USD
Weight (lbs) : 0.87
W : 2-3/16”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 18,000
Bolt Dimeter : 1"
FERRULE LOOP INSERT 1/4" 304 SS
$ 3.49 3.49 USD
Insert Length : 2-3/4"
Thread Depth : 1-1/4"
SLW(LBS) : 650
Suggested Edge Distance : 5"
Thread : 1/4"-20NC
Wire Diameter : 0.243"
FERRULE LOOP INSERT 3/8" 304 SS
$ 3.79 3.79 USD
Insert Length : 2-3/4"
Thread Depth : 1-1/4"
SLW(LBS) : 2000
Suggested Edge Distance : 5"
Thread : 3/8"-16NC
Wire Diameter : 0.243"

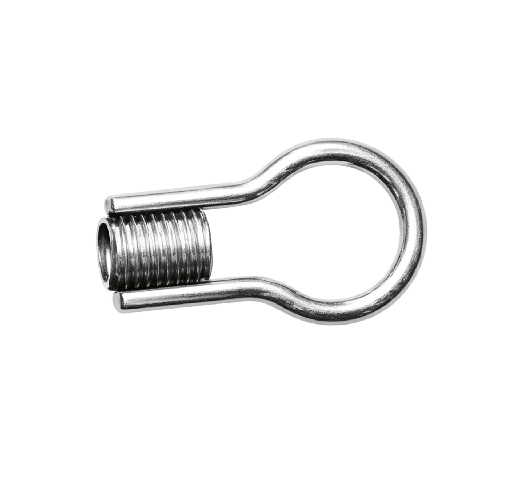

FERRULE LOOP INSERT 1/2" 304 SS
$ 4.49 4.49 USD
Insert Length : 2-3/4"
Thread Depth : 1-3/8"
SLW(LBS) : 2000
Suggested Edge Distance : 5"
Thread : 1/2"-13NC
Wire Diameter : 0.262"
FERRULE LOOP INSERT 5/8" 304 SS
$ 6.99 6.99 USD
Insert Length : 3-1/4"
Thread Depth : 1-5/8"
SLW(LBS) : 2400
Suggested Edge Distance : 5"
Thread : 5/8"-11NC
Wire Diameter : 0.262"
FERRULE LOOP INSERT 3/4" 304 SS
$ 5.99 5.99 USD
Insert Length : 3-1/2"
Thread Depth : 1-5/8"
SLW(LBS) : 2400
Suggested Edge Distance : 5"
Thread : 3/4"-10NC
Wire Diameter : 0.375”
