T Bar Anchors

T-Bar anchors (MAP-TBAN family) use a horizontal cross-bar at the embed foot to develop pull-out capacity through both mechanical bond and concrete shear. That geometry makes them the go-to choice for slim panels, decorative wall sections, and edge-load cases where a spherical-head anchor would concentrate stress too tightly. OCS T-Bar anchors range from 2T through 4T with multiple embedment lengths, and are manufactured to meet OSHA 29 CFR 1926.704 embedded lifting insert requirements.

4T x 7-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-84
$ 3.68 3.68 USD
L - Length : 7-1/4”
Weight (lbs) : 1.98
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 8”
T : 5/8”
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 14-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”
4T x 6-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-59
$ 2.89 2.89 USD
L - Length : 6-1/4”
Weight (lbs) : 1.68
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 7”
T : 5/8”
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 12-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”
4T x 5-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-33
$ 2.75 2.75 USD
L - Length : 5-1/4”
Weight (lbs) : 1.46
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32000
Min. Panel Thickness : 6”
T : 5/8"
Unreinforced Shear Load (lbs) : 8,000
Min. Edge Distance : 10-1/2”
Unreinforced Tension Load (lbs) : 8,000
D : 11/16”

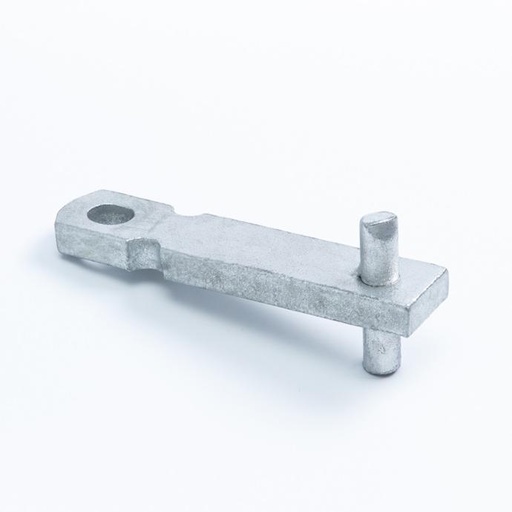

4T x 4-1/4" T-Bar Anchor
Item#: MAP-TBAN-4-08
$ 2.45 2.45 USD
L - Length : 4-1/4”
Weight (lbs) : 1.20
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
Min. Panel Thickness : 5”
T : 5/8”
Unreinforced Shear Load (lbs) : 5,500
Min. Edge Distance : 8-1/2”
Unreinforced Tension Load (lbs) : 5,500
D : 11/16”
2T x 4" T-Bar Anchor
Item#: MAP-TBAN-2
$ 1.27 1.27 USD
L - Length : 4”
Weight (lbs) : 0.66
W : 1-1/4”
Size : 2T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
Min. Panel Thickness : 4-3/4”
T : 3/8”
Unreinforced Shear Load (lbs) : 4,000
D : 1/2”
Min. Edge Distance : 8”
Unreinforced Tension Load (lbs) : 4,000
