Tech Anchor

Tech Anchors (MAP-TAN family) are OCS's compact head-profile anchor for panels where a standard spherical head recess is too large. The tech head engages a matching clutch through the same locking principle but in a tighter overall footprint, which is useful for architectural facades, decorative panels, and thin double-wall assemblies. OCS carries the tech anchor in 2T and 4T ratings, both forged from heat-treated alloy steel and manufactured to meet OSHA 29 CFR 1926.704.

2T Tech Anchor
Item#: MAP-TAN-2
$ 1.21 1.21 USD
L - Length : 4-15/16”
Weight (lbs) : 0.50
W : 1-1/4”
Size : 2T
Ring Clutch System : 2T-3T
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
T : 3/8”

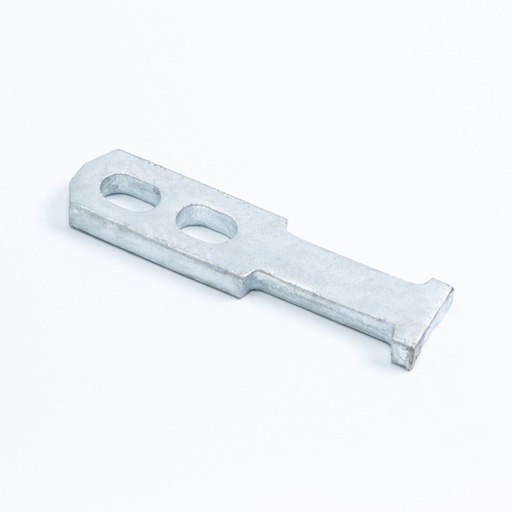

4T Tech Anchor
Item#: MAP-TAN-4
$ 2.49 2.49 USD
L - Length : 5-7/16”
Weight (lbs) : 1.13
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
T : 5/8”
