Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections
1/2" x 1-3/4" Flared Wing Ferrule
$ 1.43 1.43 USD
L - Length : 4-1/2”
Size : 1/2"-13-UNC
Wire Diameter : 0.256”
Insert Ultimate Mechanical Capacity(lbs) : ≥9,000
Hight : 1-7/8”
3/4" x 2-7/16" Flared Wing Ferrule
$ 2.73 2.73 USD
L - Length : 5-1/8”
Size : 3/4"-10-UNC
Wire Diameter : 0.327”
Insert Ultimate Mechanical Capacity(lbs) : ≥18,000
Hight : 2-7/16”
BD - Bolt Diameter : 3/4”
1/4" Thin Slab Ferrule
$ 1.04 1.04 USD
L - Length : 4”
Size : 1/4"-20-UNC
D-wire Diameter : 0.256”
Hight : 1-1/4”
Tension(lbs) : ≥450
1/2" Thin Slab Ferrule
$ 1.07 1.07 USD
L - Length : 4”
Size : 1/2"-13-UNC
D-wire Diameter : 0.256”
Hight : 1-3/8”
Tension(lbs) : ≥900
3/4" Ferrule Loop Insert
$ 1.46 1.46 USD
L - Length : 3-1/2”
W : 2-1/4”
Size : 3/4"-10-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥15000
RING DIA : 13/16”
1/2" Ferrule Loop Insert
$ 0.91 0.91 USD
L - Length : 2-3/4”
Size : 1/2"-13-UNC
Width : 1-5/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 9/16”
3/8" Ferrule Loop Insert
$ 0.86 0.86 USD
L - Length : 2-3/4”
Size : 3/8"-16-UNC
Width : 1-1/2”
Bolt Diameter (UNC Thread) : 3/8”
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 61/2”
Threads per Inch (UNC) : 16
5/8" Ferrule Loop Insert
$ 1.27 1.27 USD
L - Length : 3-1/2”
W : 2-1/8”
Size : 5/8"-11-UNC
Insert Ultimate Mechanical Load Tension (lbs) : ≥9000
RING DIA : 13/16”

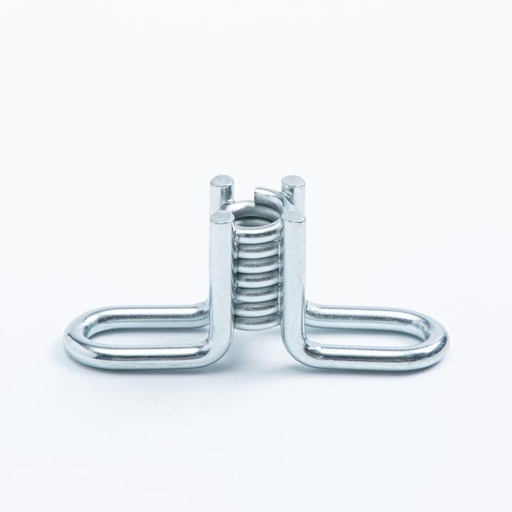

3-1/2" x 3/4" FLARED THIN SLAB COIL
$ 2.05 2.05 USD
L - Length : 5-1/4”
Load Class : ≥80.1KN
H : 3-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"
1-3/4" x 1/2" FLARED THIN SLAB COIL
$ 0.96 0.96 USD
L - Length : 4-11/16”
Load Class : ≥36.5KN
H : 1-3/4”
SPRING CIRCLES : 7
D - Wire Diameter : 0.256”
SPRING SIZE : 1/2"
2-5/16" x 3/4" Flared Thin Slab Coil
$ 2.00 2.0 USD
L - Length : 5-1/4”
Load Class : ≥45.4KN
H : 2-5/16”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 3/4"
2-5/16" x 1" Flared Thin Slab Coil
$ 2.29 2.29 USD
L - Length : 5-11/16”
Load Class : ≥63.2KN
H - Height : 2-5/16”
SPRING CIRCLES : 6
D - Wire Diameter : 0.327”
SPRING SIZE : 1"
4-1/2" x 1" Flared Thin Slab Coil
$ 2.91 2.91 USD
L - Length : 5-11/16”
Load Class : ≥111.2KN
H : 4-1/2”
SPRING CIRCLES : 7
D - Wire Diameter : 0.327”
SPRING SIZE : 1"
5-1/2" x 1" EXP COIL COIL INSERT
$ 5.46 5.46 USD
L - Length : 5-1/2”
W : 2-3/4”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25000
Bolt Diameter : 1”
# of Struts : 2
4-1/2" x 3/4" Exp Coil Coil Insert
$ 3.41 3.41 USD
L - Length : 4-1/2”
Load Class : ≥80.1KN
W : 2-1/8”
D - Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Bolt Diameter : 3/4"
# of Struts : 2

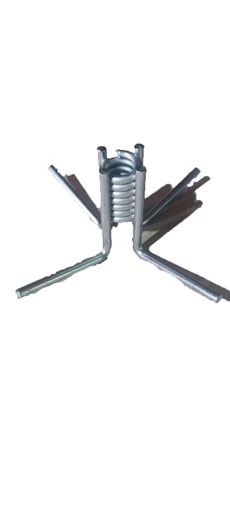

4" x 1" Leg Coil Insert
$ 3.51 3.5100000000000002 USD
Load Class : ≥111.2KN
L : 9-3/8"
W（Kg） : 0.28
H : 4"
RING DIA : 8.3
SPRING SIZE : 1"
SPRING CIRCLES : 7
12" x 1/2" FLARED LOOP COIL
$ 2.29 2.29 USD
L - Length : 12”
Load Class : ≥64.1KN
H : 6”
SPRING CIRCLES : 8
RING DIA : 8.3
SPRING SIZE : 1/2"
12" x 3/4" Flared Loop Coil
$ 3.69 3.69 USD
L - Length : 12”
Load Class : ≥80.1KN
W（Kg） : 0.474
H : 6”
SPRING CIRCLES : 7
RING DIA : 9.5
SPRING SIZE : 3/4"
6" x 3/4" STRAIGHT LOOP COIL
$ 1.72 1.72 USD
W : 1-7/8”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 18,000
Bolt Dimeter : 3/4"

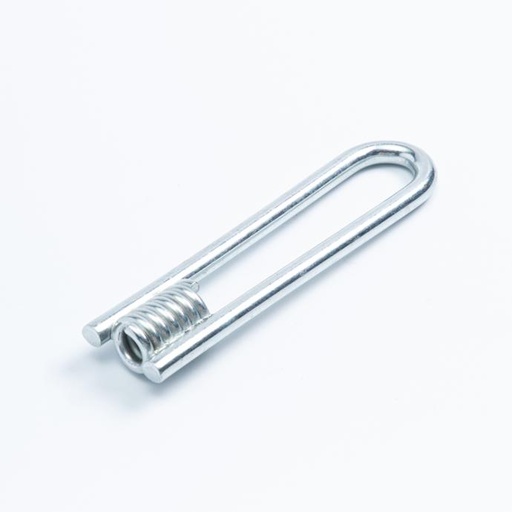

4 " x 1/2" STRAIGHT LOOP COIL
$ 0.70 0.7000000000000001 USD
W : 1-5/16”
Width : 1-5/16”
Total Length : 4”
Insert Ultimate Mechanical Load Tension (lbs) : 9,000
Bolt Dimeter : 1/2"
