Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections

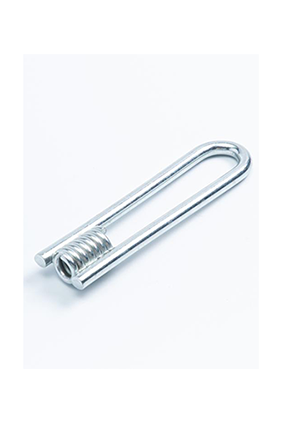

6" x 1/2" STRAIGHT LOOP COIL
$ 1.01 1.01 USD
W : 1-7/16”
Total Length : 6”
Insert Ultimate Mechanical Load Tension (lbs) : 14,400
Bolt Dimeter : 1/2"
10T x 7" Insulated Panel Anchor
$ 11.05 11.05 USD
L - Length : 4-3/4”
Weight (lbs) : 6.51
W : 7”
Size : 10.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
A : 3-3/8”
B : 4-3/8”
10T x 8" Insulated Panel Anchor
$ 12.45 12.450000000000001 USD
L - Length : 4-3/4”
Weight (lbs) : 7.49
W : 8”
Size : 10.0T
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
A : 3-3/8”
B : 5-1/2”
4T Split Foot Erection Anchor with Shear Plate
$ 8.06 8.06 USD
L - Length : 10-1/2”
Weight (lbs) : 5.06
W - Width : 2-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
T : 5/8”
8T ERECTION HEAD ANCHOR
$ 14.22 14.22 USD
L - Length : 13-1/4”
Weight (lbs) : 9.23
W : 3-3/4”
Size : 8.0T
Ring Clutch System : 8T-12T
T - Thickness : 3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
A : 4”
B : 1-3/4”
N : 3-1/8”
8T ERECTION HEAD ANCHOR
$ 7.67 7.67 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 7-3/4“
D : 4/5”
4T TECH ANCHOR
$ 1.82 1.82 USD
L - Length : 5-7/16”
Weight (lbs) : 1.13
W : 1-1/2”
Size : 4.0T
Ring Clutch System : 4T-6T
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
T : 5/8”
2T TECH ERECTION ANCHOR
$ 2.55 2.5500000000000003 USD
L - Length : 8-11/16”
Weight (lbs) : 1.53
W : 2”
Size : 2T
Ring Clutch System : 2T-3T
T - Thickness : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 16,000
HD - Hole Diameter : 5/8”
A : 5/8”
B : 2-5/8”
N : 1-13/16”
8T TECH ERECTION ANCHOR
$ 13.65 13.65 USD
L - Length : 13-1/2”
Weight (lbs) : 8.48
W : 3-3/4”
Size : 8.0T
Ring Clutch System : 8T-12T
T - Thickness : 3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
A : 1”
B : 3-5/8”
N : 3-1/8”
4T TECH ERECT ANCHOR, W/SHEAR PLATE
$ 7.23 7.23 USD
L - Length : 10-7/16”
Weight (lbs) : 4.49
W - Width : 2-1/2”
Size : 4.0T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 4T-6T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 32,000
HD - Hole Diameter : 3/4”
SPT - Shear Plate Thickness : 3/8”
T : 5/8”
A : 3/4”
B : 2-5/8”
N : 2-1/2”
8T TECH ERECT ANCHOR, W/SHEAR PLATE
$ 15.55 15.55 USD
L - Length : 13-1/2”
Weight (lbs) : 9.94
W - Width : 3-3/4”
Size : 8.0T
SPW - Shear Plate Width : 3”
Ring Clutch System : 8T-12T
SPL - Shear Plate Length : 3-1/2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 64,000
HD - Hole Diameter : 1”
SPT - Shear Plate Thickness : 3/8”
T : 3/4”
A : 1”
B : 3-5/8”
N : 3-1/8”
8T SANDWICH PANEL ERECTION ANCHOR,W/SHEAR PLATE
$ 11.10 11.1 USD
L - Length : 4-3/4”
Weight (lbs) : 6.97
W : 6”
Size : 8.0T
SPW - Shear Plate Width : 3-1/2”
Ring Clutch Systerm : 8T-12T
T - Thickness : 3/4”
SPL - Shear Plate Length : 3"
Anchor Ultimate Mechanical Load in Tension (lbs) : 64000
SPT - Shear Plate Thickness : 3/8”
A : 3-1/2”
B : 4-3/8”
10T x 8" SANDWICH PANEL ERECTION ANCHOR,W/SHEAR PLATE
$ 17.65 17.650000000000002 USD
L - Length : 4-3/4”
Weight (lbs) : 13.52
W : 8”
Size : 10.0T
SPW - Shear Plate Width : 8”
T - Thickness : 3/4”
Ring Clutch System : 8T-12T
SPL - Shear Plate Length : 3”
Anchor Ultimate Mechanical Load in Tension (lbs) : 80,000
SPT - Shear Plate Thickness : 1/2”
A : 3-3/8”
B : 5-1/2”
3T Forged Erection Anchor
$ 3.20 3.2 USD
L - Length : 8”
Weight (lbs) : 1.27
W : 2-3/8”
Size : 3T
Ring Clutch System : 2T-3T
D : 9
T - Thickness : 3/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 24,000
N : 1-13/16”
6T Forged Erection Anchor
$ 7.93 7.930000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 2.94
W : 3-3/16”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
N : 2-1/2”
12T Forged Erection Anchor
$ 15.05 15.05 USD
L - Length : 12-1/2”
Weight (lbs) : 5.10
W : 3-3/4”
Size : 12T
Ring Clutch System : 8T-12T
D : 1-3/16”
T - Thickness : 3/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 96,000
N : 3-1/8”
6T Forged Erection Anchors with Share Bar
$ 8.68 8.68 USD
L - Length : 10-1/2”
Weight (lbs) : 3.59
W : 3-5/8”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SBD - Shear Bar Diameter : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48000
SBL - Shear Bar Length : 6”
N : 2-1/2”
6T Forged Erection Anchors with Share Bar
$ 8.87 8.870000000000001 USD
L - Length : 10-1/2”
Weight (lbs) : 4.18
W : 4-1/8”
Size : 6T
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SBD - Shear Bar Diameter : 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
SBL - Shear Bar Length : 6”
N : 2-1/2”
3T Forged Erection Anchors with Share Plate
$ 5.49 5.49 USD
L - Length : 8”
Weight (lbs) : 2.10
W : 2-5/16”
Size : 3T
SPW - Shear Plate Width : 2-1/2”
Ring Clutch System : 2T-3T
D : 5/8”
T - Thickness : 3/8”
SPL - Shear Plate Length : 3-1/2”
Anchor Ultimate Mechanical Load in Tension (lbs) : 24,000
SPT - Shear Plate Thickness : 7/16”
6T Forged Erection Anchors with Share Plate
$ 12.06 12.06 USD
L - Length : 10-1/2”
Weight (lbs) : 4.58
W : 2-15/16”
Size : 6T
SPW - Shear Plate Width : 3-1/8”
Ring Clutch System : 4T-6T
D : 7/8”
T - Thickness : 5/8”
SPL - Shear Plate Length : 4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 48,000
SPT - Shear Plate Thickness : 1/2”
