Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections

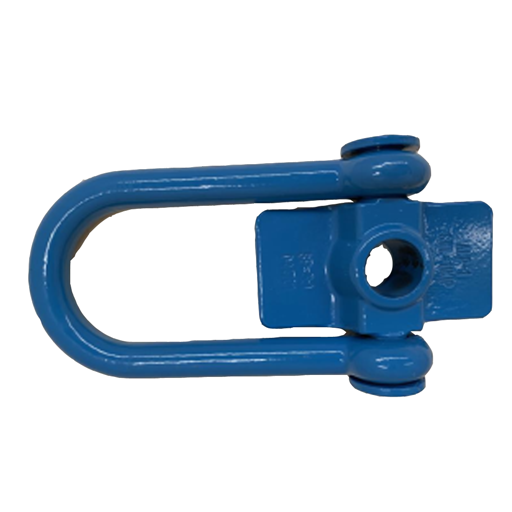

3/4" Single Swivel Lift Plate
$ 55.85 55.85 USD
L - Length : 5”
Weight (lbs) : 5.68
H- Overall Height : 8-1/8”
W : 2-1/2”
Size : 3T
5:1 SWL (lbs) : 11,000
T : 1-1/2”
Bolt Diameter : 3/4”
1-3T Recess Member for Erection Anchor
$ 4.13 4.13 USD
L - Length : 4-1/16”
Weight (lbs) : 0.23
W : 1-11/16”
Plate Thickness : 6
Size : 1.3T
Ring Clutch System : 1-3T
H : 1-7/8”
Color : Red
D - Diameter : 3/8”

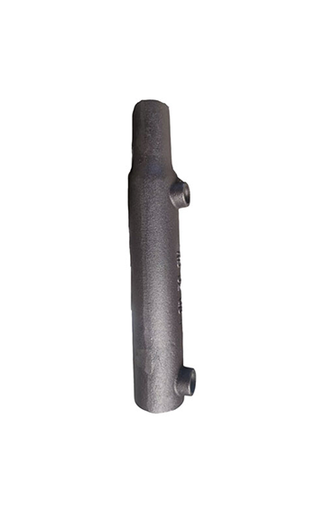

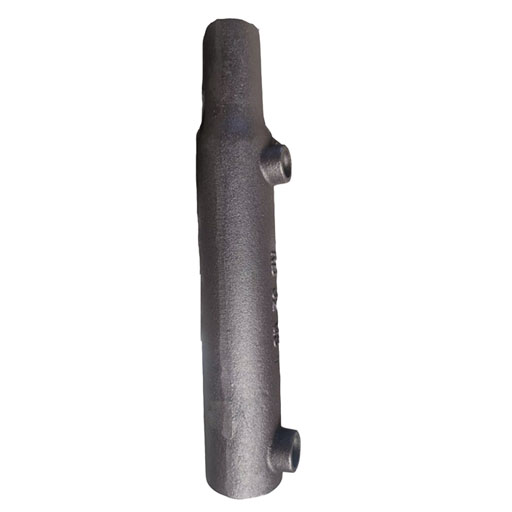

Grouting Sleeve
$ 5.78 5.78 USD
L(mm) : 200
D1(mm) : 26
D2(mm) : 46/58
Grouting Sleeve
$ 6.69 6.69 USD
L(mm) : 240
D1(mm) : 30
D2(mm) : 50
Grouting Sleeve
$ 12.41 12.41 USD
L(mm) : 290
D1(mm) : 35
D2(mm) : 60
Grouting Sleeve
$ 19.15 19.150000000000002 USD
L(mm) : 360
D1(mm) : 43
D2(mm) : 70
Grouting Sleeve
$ 23.55 23.55 USD
L(mm) : 445
D1(mm) : 55
D2(mm) : 75

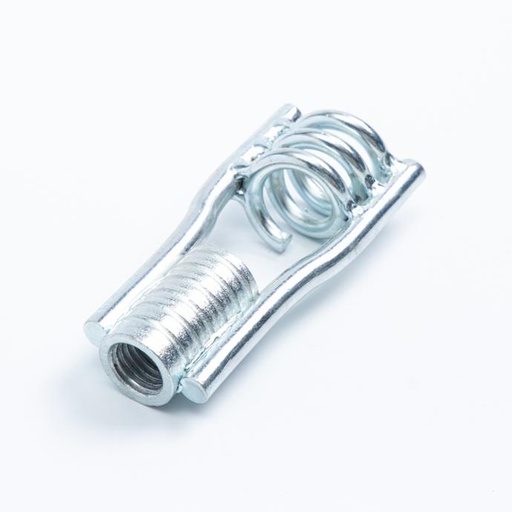

3/4" x 4-1/2" Exp. Coil Ferrule Insert
$ 3.90 3.9 USD
L - Length : 4-1/2"
Size : 3/4"-10-UNC
Width : 2-1/8”
Wire Diameter : 0.375”
Insert Ultimate Mechanical Capacity (lbs) : 18000
Threads per Inch (UNC) : 10
Number of Struts : 2
BD - Bolt Diameter : 3/4”
1" x 5-1/2" Exp. Coil Ferrule Insert
$ 6.19 6.19 USD
L - Length : 5-1/2"
Size : 1"-8-UNC
Width : 2-3/4”
Wire Diameter : 0.440”
Insert Ultimate Mechanical Capacity (lbs) : 25,000
Threads per Inch (UNC) : 8
Number of Struts : 2
BD - Bolt Diameter : 1”
1-1/4" x 7-1/2" Exp. Coil Ferrule Insert
$ 9.83 9.83 USD
L - Length : 7-1/2"
W - Width : 3”
Size : 1-1/4"-7-UNC
Insert Ultimate Mechanical Capacity (lbs) : 40000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 7
BD - Bolt Diameter : 1-1/4”

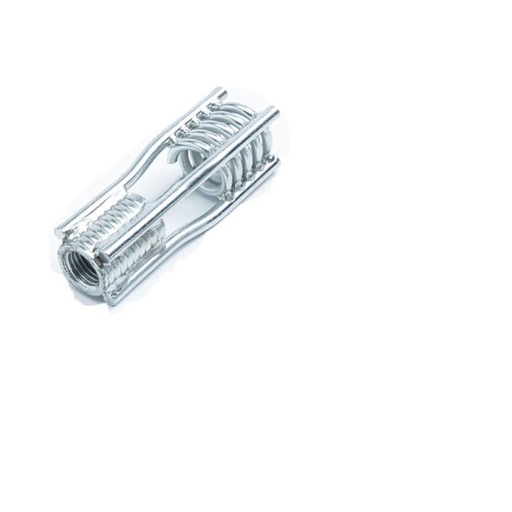

1-1/2" x 9-1/2" Exp. Coil Ferrule Insert
$ 19.11 19.11 USD
L - Length : 9-1/2"
W - Width : 3-3/8”
Size : 1-1/2"-6-UNC
Insert Ultimate Mechanical Capacity (lbs) : 60000
D - Wire Diameter : 0.440”
Threads per Inch (UNC) : 6
BD - Bolt Diameter : 1-1/2”
1/4" X 6" U-Anchor
$ 0.60 0.6 USD
L - Length : 6"
Weight (bs) : 0.19
W : 2-13/16"
Foot Width : 2-17/16"
Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 6,400
Ultimate Tensile Requirement KN : ≥28.5KN
Foot Diameter : 1/2"
7/16" X 11" U-Anchor
$ 1.90 1.9000000000000001 USD
L - Length : 11"
Weight (lbs) : 1.27
W : 3-1/2"
Foot Width : 3-15/16"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 29800
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
3/8" X 7" U-Anchor
$ 2.24 2.24 USD
L - Length : 7”
Weight (bs) : 0.63
W : 2-3/4"
Foot Width : 3-3/4"
Wire Diameter : 3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 18520
Ultimate Tensile Requirement KN : ≥83KN
Foot Diameter : 1"
7/16" X 9" U-Anchor
$ 1.90 1.9000000000000001 USD
L - Length : 9"
Weight (bs) : 1.08
W : 3-1/2"
Foot Width : 3-15/16"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 29800
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
5/8" X 16-1/2" U-Anchor
$ 5.82 5.82 USD
L - Length : 16-1/2"
Weight (bs) : 3.5
W : 11-9/16"
Foot Width : 11-9/16"
Wire Diameter : 5/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 45000
Ultimate Tensile Requirement KN : ≥201KN
2T-3T Shear Bar
$ 1.92 1.92 USD
L - Length : 14-3/4”
Weight (lbs) : 0.98
Size : 2T
H : 2-1/2”
D - Diameter : 1/2”
8T Spiral Erection Anchor
$ 12.87 12.870000000000001 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 18-1/9"
D : 3/4”
8T Spiral Erection Anchor
$ 14.48 14.48 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 18-1/9"
D : 3/4”
8T Spiral Erection Anchor
$ 14.17 14.17 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 17-11/10"
D : 3/4”
