Public Pricelist
Sort By: Featured
  • Lifting And Handling
  • Inserts and Connections
Tie Back Anchor
$ 2.26 2.2600000000000002 USD
W : 6-1/6"
L(mm) : 11"
D : 5/11"
Ultimate Tensile Requirement KN : ≥133.5KN
M12 Steel Core Lifting Loop
$ 3.24 3.24 USD
L - Length : 6.10"
Weight (lbs) : 0.15
SWL(kg) : 500
C - Lead screw length excluding cap : 0.91"
E - Screw cap thickness : 0.43"
S - Cable diameter : 0.24"
F - Screw length : 1.34"
M20 Steel Core Lifting Loop
$ 5.59 5.59 USD
L - Length : 8.46"
Weight (lbs) : 0.64
SWL(kg) : 2000
C - Lead screw length excluding cap : 1.42"
E- Screw cap thickness : 0.67"
S- Cable diameter : 0.39"
F- Screw length : 2.09"
M16 Steel Core Lifting Loop
$ 4.34 4.34 USD
L - Length : 6.5"
Weight (lbs) : 0.27
SWL(kg) : 1200
C - Lead screw length excluding cap : 1.1"
E- Screw cap thickness : 0.55"
S- Cable diameter : 0.31"
F- Screw length : 1.65"
M24 Steel Core Lifting Loop
$ 8.51 8.51 USD
L - Length : 10.04"
Weight (lbs) : 0.99
SWL(kg) : 2500
C - Lead screw length excluding cap : 1.77"
S- Cable diameter : 0.47"
F- Screw length : 2.48"
E-Screw cap thickness : 0.71"
M30 Steel Core Lifting Loop
$ 13.07 13.07 USD
L - Length : 11.81”
Weight (lbs) : 2.18
SWL(kg) : 4000
C - Lead screw length excluding cap : 2.20"
F - Screw length : 3.50"
E- Screw cap thickness : 1.30"
S- Cable diameter : 0.63"
M36 Steel Core Lifting Loop
$ 18.33 18.330000000000002 USD
L - Length : 13.39"
Weight (lbs) : 3.26
SWL(kg) : 6300
C - Lead screw length excluding cap : 2.76"
E- Screw cap thickness : 0.94"
S- Cable diameter : 0.71"
F- Screw length : 3.70"
M42 Steel Core Lifting Loop
$ 24.79 24.79 USD
L - Length : 16.54"
Weight (bs) : 4.74
SWL(kg) : 8000
C - Lead screw length excluding cap : 3.03"
F - Screw length : 4.13"
E- Screw cap thickness : 1.10"
S- Cable diameter : 0.79"

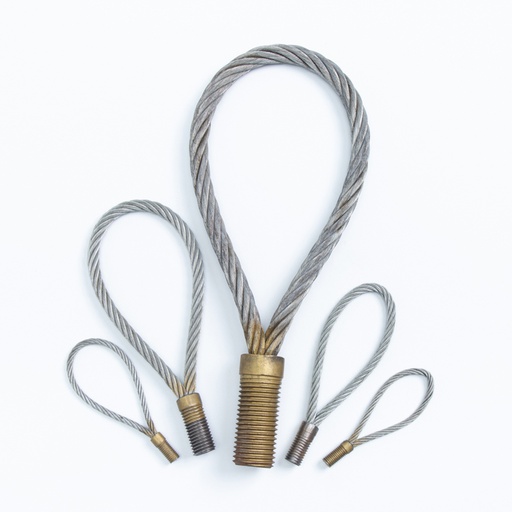

M52 Steel Core Lifting Loop
$ 40.98 40.980000000000004 USD
L - Length : 21.65"
Weight (lbs) : 6.61
SWL(kg) : 12500
C - Lead screw length excluding cap : 3.82"
E- Screw cap thickness : 1.10"
S- Cable diameter : 1.02"
F- Screw length : 4.53"
500 lbs Steel Core Lift Loop
$ 0.36 0.36 USD
Weight (lbs) : 0.06
W - Width : 3-3/8"
H- Height : 8"
Anchor Ultimate Mechanical Load Tension (lbs) : 2000
EH - Exposed Height (1/3 of Height) : 2-5/8"
D-Wire Diameter : 1/8"
ED - Embedded Depth (2/3 of Height) : 5-3/8"
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 500
10000 lbs Steel Core Lift Loop
$ 4.88 4.88 USD
Weight (lbs) : 1.17
W : 7-1/2"
H : 15"
EH - Exposed Height (1/3 of Height) : 5"
ED - Embedded Depth (2/3 of Height) : 10"
D - Wire Diameter : 9/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 40000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 10000

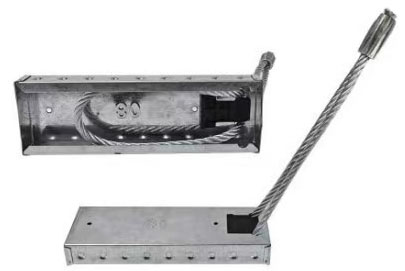

Connector Loop Box 315
$ 1.26 1.26 USD
L1 (Length 1) : 6.3"
L2 (Length 2) : 6.69"
SL (Length) : 3.15"
H (Height) : 0.79"
B (Width) : 1.97"
D (Diameter) : 0.24"
W (Weight/KG) : 0.17
Connector Loop Box 394
$ 1.35 1.35 USD
L1 (Length 1) : 6.3"
L2 (Length 2) : 6.69"
SL (Length) : 3.94"
H (Height) : 0.79"
B (Width) : 1.97"
D (Diameter) : 0.24"
W (Weight/KG) : 0.2
Connector Loop Box 472
$ 1.47 1.47 USD
L1 (Length 1) : 6.3"
L2 (Length 2) : 6.69"
SL (Length) : 4.72"
H (Height) : 0.79"
B (Width) : 1.97"
D (Diameter) : 0.24"
W (Weight/KG) : 0.23
Connector Loop Box 551
$ 1.62 1.62 USD
L1 (Length 1) : 6.3"
L2 (Length 2) : 6.69"
SL (Length) : 4.72"
H (Height) : 0.79"
B (Width) : 1.97"
D (Diameter) : 0.24"
W (Weight/KG) : 0.23
