Lifting And Handling

1-3T Recess Member for Erection Anchor
Item#: OS-EARM-1.3T-Red
$ 4.13 4.13 USD
L - Length : 4-1/16”
Weight (lbs) : 0.23
W : 1-11/16”
Plate Thickness : 6
Size : 1.3T
Ring Clutch System : 1-3T
H : 1-7/8”
Color : Red
D - Diameter : 3/8”
8T X 19" Spiral Anchor
Item#: OS-SAN-284
$ 10.40 10.4 USD
Size : 8.0T
Ultimate Tensile Requirement KN : 15,000
H : 19”
OWT : 4-7/16”
Diameter : 11/16”
9.5T X 23" Spiral Anchor
Item#: OS-SAN-338
$ 12.68 12.68 USD
Size : 9.5T
Ultimate Tensile Requirement KN : 18,000
H : 23”
OWT : 4-9/16”
Diameter : 13/16”
1/4" X 6" U-Anchor
Item#: OS-RAN-28
$ 0.66 0.66 USD
L - Length : 6"
Weight (bs) : 0.19
W : 2-11/16"
Foot Width : 2-15/16”
Wire Diameter : 1/4”
Anchor Ultimate Mechanical Load in Tension (lbs) : 6,400
Ultimate Tensile Requirement KN : ≥28.5KN
Foot Diameter : 1/2"
7/16" X 11" U-Anchor
$ 2.44 2.44 USD
L - Length : 11"
Weight (lbs) : 1.27
W : 3-1/2"
Foot Width : 3-7/8"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 30,000
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
3/8" X 7" U-Anchor
Item#: OS-RAN-133EX
$ 1.05 1.05 USD
L - Length : 7”
Weight (bs) : 0.63
W : 2-3/4"
Foot Width : 3-7/16"
Wire Diameter : 3/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 18,760
Ultimate Tensile Requirement KN : ≥83KN
Foot Diameter : 1"
7/16" X 9" U-Anchor
Item#: OS-RAN-28
$ 2.08 2.08 USD
L - Length : 9"
Weight (bs) : 1.08
W : 3-1/2"
Foot Width : 3-15/16"
Wire Diameter : 7/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 29800
Ultimate Tensile Requirement KN : ≥133.5KN
Foot Diameter : 7/8"
5/8" X 16-1/2" U-Anchor
Item#: OS-RAN-201
$ 5.82 5.82 USD
L - Length : 16-1/2"
Weight (bs) : 3.5
W : 11-9/16"
Foot Width : 11-9/16"
Wire Diameter : 5/8"
Anchor Ultimate Mechanical Load in Tension (lbs) : 45000
Ultimate Tensile Requirement KN : ≥201KN

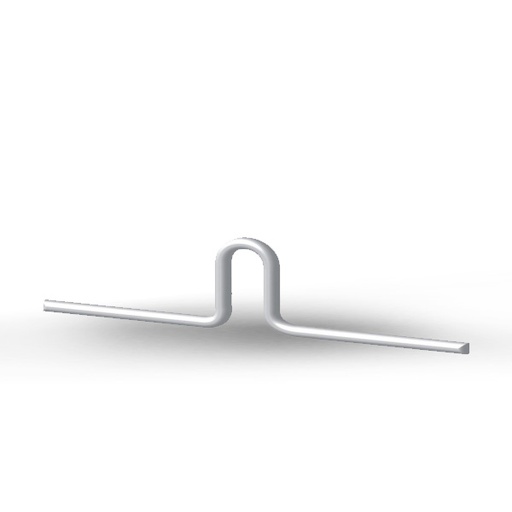

2T-3T Shear Bar
Item#: OS-SB-2
$ 1.92 1.92 USD
L - Length : 14-3/4”
Weight (lbs) : 0.98
Size : 2T
H : 2-1/2”
D - Diameter : 1/2”
8T Spiral Erection Anchor
Item#: MAP-AN-WSB-8N
$ 12.87 12.870000000000001 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 18-1/9"
D : 3/4”
8T Spiral Erection Anchor
Item#: MAP-AN-WSB-8W
$ 14.48 14.48 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 18-1/9"
D : 3/4”
8T Spiral Erection Anchor
Item#: MAP-AN-WSB-8S
$ 14.17 14.17 USD
Load Class : 8T
W : 3-3/4”
Size : 8.0T
L : 17-11/10"
D : 3/4”

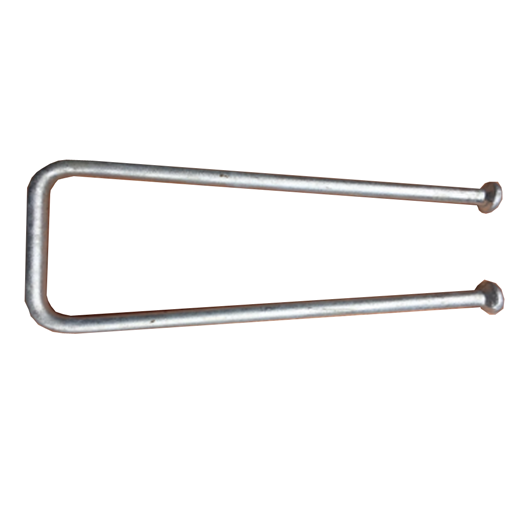

Tie Back Anchor
item : OS-TBA-133
$ 2.26 2.2600000000000002 USD
W : 6-1/6"
L(mm) : 11"
D : 5/11"
Ultimate Tensile Requirement KN : ≥133.5KN
500 lbs Steel Core Lift Loop
RL-LLO-500
$ 0.36 0.36 USD
Weight (lbs) : 0.06
W - Width : 3-3/8"
H- Height : 8"
Anchor Ultimate Mechanical Load Tension (lbs) : 2000
EH - Exposed Height (1/3 of Height) : 2-5/8"
D-Wire Diameter : 1/8"
ED - Embedded Depth (2/3 of Height) : 5-3/8"
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 500
10000 lbs Steel Core Lift Loop
Item#: RL-LLO-10000
$ 5.45 5.45 USD
Weight (lbs) : 1.17
W : 7-1/2"
H : 15"
EH - Exposed Height (1/3 of Height) : 5"
ED - Embedded Depth (2/3 of Height) : 10"
D - Wire Diameter : 9/16"
Anchor Ultimate Mechanical Load in Tension (lbs) : 40000
Tension Capacity 4:1 SWL (lbs) 4,000 PSI : 10000

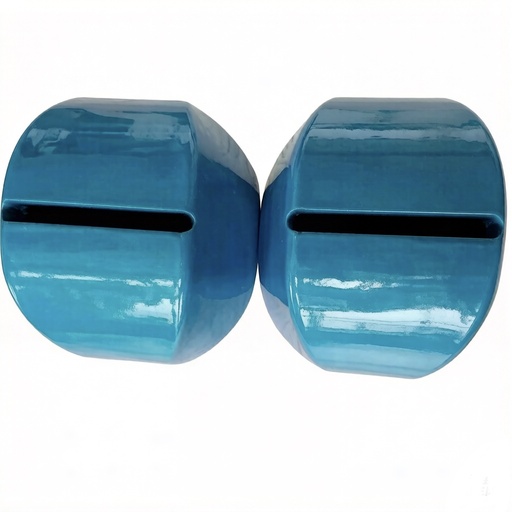

7/16 U-Bar Recess Member
OS-UARM-U7/16
$ 40.87 40.87 USD
A(mm) : 88
B(mm) : 12
C(mm) : 152
D(mm) : 78
H(mm) : 72
R(mm) : 7
M(mm) : 74
E : 132
8T*26-3/4" Spherical Head Lifting Anchor
OS-SHLA-8T-680
$ 17.40 17.400000000000002 USD
L - Length : 26-3/4''
Weight (lbs) : 7.90
Finish : HDG
Tonnage : 8
Anchor Ultimate Mechanical Load in Tension (lbs) : 64000
HD - Head Diameter : 1-13/16''
FD - Foot Diameter : 2-3/4''
RD - Rod Diameter : 1-1/8''
